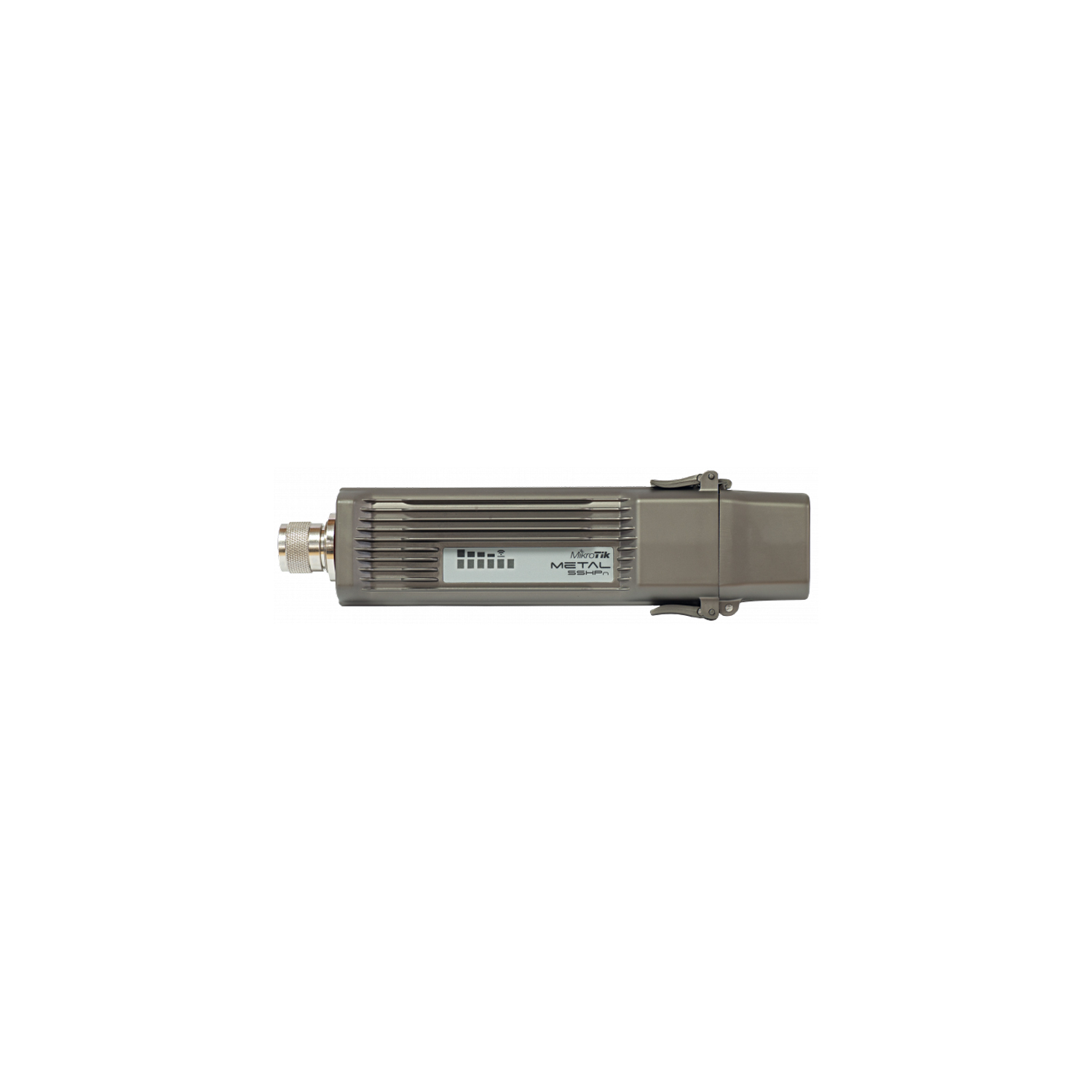

The new, completely waterproof, rugged, and super high powered RouterBOARD Metal. The serious outdoor wireless device! Fully sealed, industrial design metal case, powered by RouterBOARD and RouterOS. high output power – to reach the last mile, in any conditions! It comes with L4 license, so you can attach your favorite 5Ghz antennna to use it as an AP, to make wireless point-to-point links or as a CPE- whatever you prefer! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align. Package contains Metal-5SHPn, mounting loops, PoE injector, power adapter – RBMetal5SHPn-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. – RBMetal5SHPn (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Discontinued
Specifications
| Details |
| Product code |
RBMetal5SHPn |
| Architecture |
MIPSBE |
| CPU |
AR7241 |
| CPU core count |
1 |
| CPU nominal frequency |
400 MHz |
| Dimensions |
215x60x38mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 70°C |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
10.6 W |
Wireless
| Details |
| Wireless 5 GHz Max data rate |
150 Mbit/s |
| Wireless 5 GHz number of chains |
1 |
| Wireless 5 GHz standards |
802.11a/n |
| Wireless 5 GHz chip model |
AR9280 |
| Wireless 5 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
31 |
-93 |
| 54MBit/s |
27 |
-77 |
| MCS0 |
30 |
-92 |
| MCS7 |
28 |
-71 |
Included parts
t
24V 0.8A power adapter t
Angled N connector t
PoE injector t
Metal rings (two)
