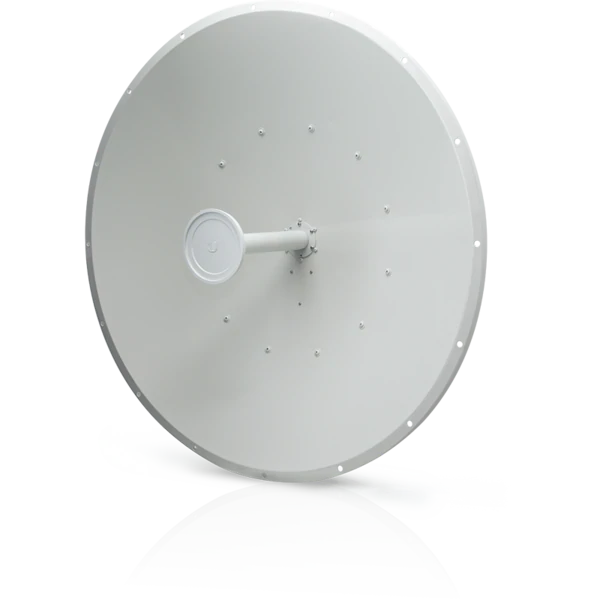

RocketDish Antenna 34dBi
airMAX® 2×2 PtP Bridge Dish Antenna Pair the RocketDish™ with a Rocket™M BaseStation for Point‑to‑Point (PtP) bridging and network backhauls.
RocketDish 5G: 5GHz AirMax 2×2 PtP Bridge Dish Antenna
New Technology OMT Design
Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M5 to create powerful 2×2 MIMO PtP Bridging applications. Rocket mount and weatherproof RF jumpers included.
Rocket M Seamlessly Integrates with Rocket Dish Antenna
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Technical Specifications:
| RD-5G34 | |
|---|---|
| Dimensions | 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57″) |
| Weight | 13.5 kg (29.76 lb) |
| Frequency Range | 4.9 – 5.8 GHz |
| Gain | 4.9 GHz: 30 dBi 5 – 5.8 GHz: 34 dBi |
| HPOL Beamwidth | 3° (3 dB) |
| VPOL Beamwidth | 3° (3 dB) |
| F/B Ratio | 42 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,779 N @ 200 km/h (400 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
