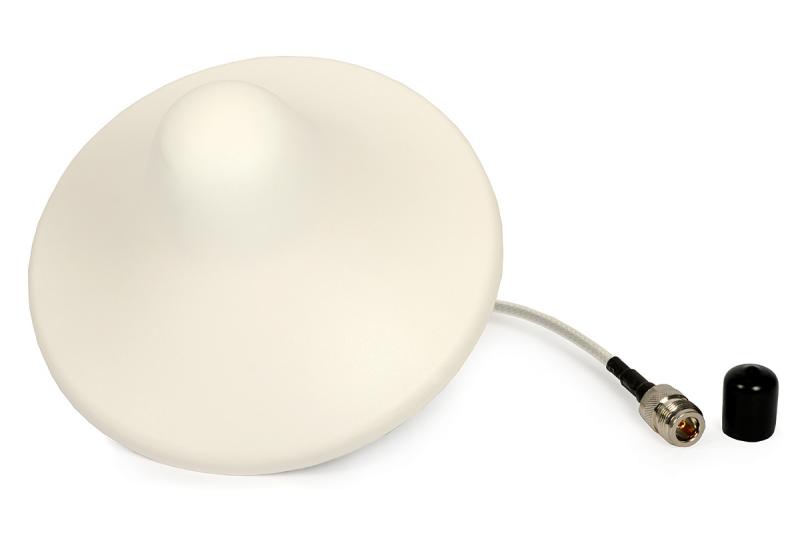

The antenna features 3 dBi gain both in 806-960 MHz and 1710-2500 MHz bands, which makes it suitable for GSM, DCS, and UMTS applications.
Features:
- indoor use, omnidirectional characteristic,
- broadband device: 806-960MHz and 1710-2500MHz (GSM/DCS/UMTS),
- 3 dBi gain,
- VSWR <1.5,
- compact size,
- easy fixing to plasterboard or other suspended ceilings.
Specifications:
| Frequency range [MHz] | 806-960 | 1710-2500 |
| Gain [dBi] | 3 | |
| VSWR | ≤1.5 | |
| Angle of radiation [°] V/H | 55/360 | |
| Impedance [Ω] | 50 | |
| Polarization | Vertical | |
| Max supplied power [W] | 100 | |
| Connector | N-f | |
| Dimensions [mm] | φ165×94 | |
| Weight [kg] | 0.50 | |
| Installation | Plasterboard | Suspension ceiling |
| Fixing plate | Plastic nut | |
