RocketDish AC

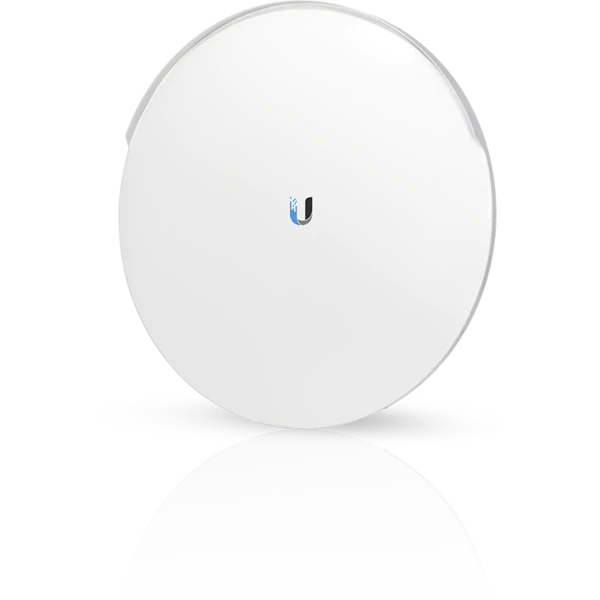

RocketDish 5G: 5GHz AirMax 2×2 PtP Bridge Dish Antenna
airMAX® ac 2×2 PtP Bridge Dish Antenna The RocketDish™ ac Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios for Point‑to‑Point (PtP) bridging and backhauls. They are compatible with the RocketM5; however, optimal performance requires the Rocket5ac.
Technical Specifications:
| RD-5G31-AC | |
|---|---|
| Dimensions | 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in) |
| Weight | 7.6 kg (16.76 lb) (Mount Included) |
| Frequency Range | 5.1 – 5.8 GHz |
| Gain | 31 dBi |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,028 N @ 200 km/h (231 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included |
