What This Product Does

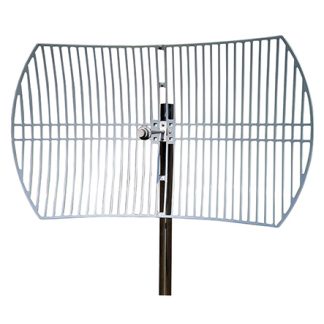

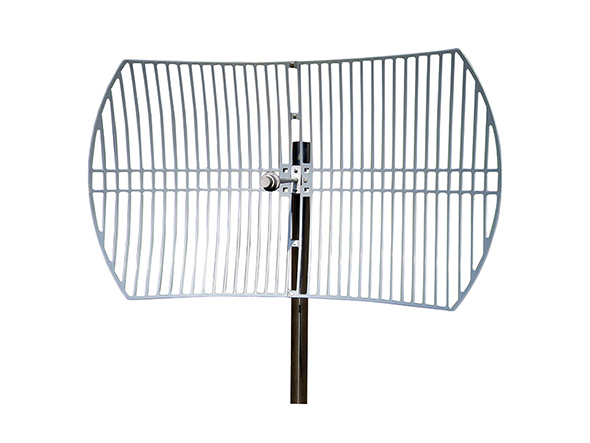

The TL-ANT5830B 5GHz 30dBi Outdoor Grid Parabolic Antenna is ideal for outdoor use by attaching to your wireless access points/routers which operate on less crowded 5GHz band. It could be used for long distance point-to-point connection, providing your stable wireless links. It is very easy to use, no configuration or software installation required.
| Antenna Specifications | |
|---|---|
| Dimension | 600×900(mm) |
| Frequency | 5.15~5.85GHz |
| Impedance | 50 Ohms |
| Gain | 30dBi |
| VSWR(MAX.) | ≤1.8 |
| HPBW/H( °) | 6 |
| HPBW/V( °) | 4 |
| Polarization | Vertical or Horizontal |
| Connector Type | N Female |
| Mounting | Pole Mount |
| Operating Temp. | -40℃~60℃(-40℉~140℉) |
| Storage Temp. | -40℃~60℃(-40℉~140℉) |
| F/B Ratio | ＞30dB |
| Maximum Input Power | 100W |
| Mounting Mast Diameter | Ø30~Ø50 mm |
| Radome Material | Aluminium Die Cast |
| Standards | RoHS, WEEE |
| Survival Wind Speed | 241Km/hr |
