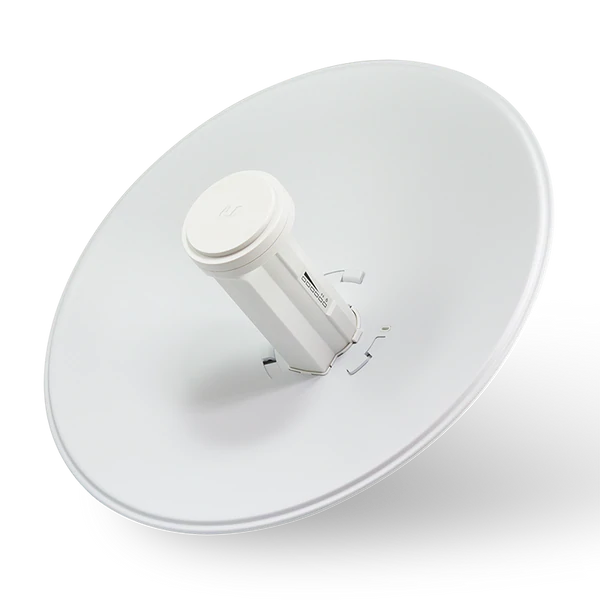

UBIQUITI NanoBeam M5-300 5GHz MIMO, High-Performance airMAX Bridge
Incorporating a dish reflector design with advanced technology, the PowerBeam™ is Ubiquiti airMAX® CPE for customer locations.
Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam.
Improved Noise Immunity The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design The PowerBeam models are available in two form factors:
- All-in-One Design The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The PowerBeam gets maximum gain out of the smallest footprint.
- Dish Reflector Design Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing increased performance from its faster processor and innovative mechanical design at a low cost, the PowerBeam is extremely versatile and cost-effective to deploy
Technical Specifications:
| PBE-M5-300 | |
|---|---|
| Dimensions | 325 x 325 x 256 mm (12.8 x 12.8 x 10.1″) |
| Weight (Mount Included) | 1.203 kg (2.65 lb) |
| Gain | 22 dBi |
| Networking Interface | (1) 10/100 Ethernet Port |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 6W |
| Max. TX Power | 26 dBm |
| Power Supply | 24V, 0.5A PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 200.2 N @ 200 km/h (45 lbf @ 125 mph) |
| Mounting | Pole Mounting Kit Included |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5 |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Worldwide | 5150 – 5875 |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 5250 – 5350 5470 – 5725 5725 – 5850 |
