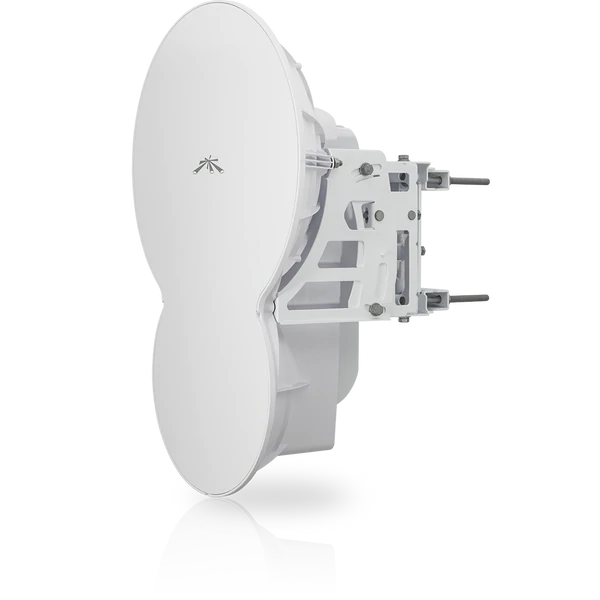

Ubiquiti airFiber
Revolutionary Wireless Technology.
Introducing airFiber, a truly revolutionary 24 GHz Point-to-Point radio from Ubiquiti. Housed in a compact, highly efficient form factor, airFiber delivers revolutionary performance of 1.4+ Gbps, aggregate throughput and 13+ km in range. airFiber ushers in a new era in price disruptive, carrier-class backhaul technology.
Supports 24 GHz frequencies
Features:
- Supports 24 GHz frequencies
- 13+ km transmission range
- Powered with the included 50V, 1.2A PoE Gigabit Ethernet adapter
- (1) 10/100 Ethernet port (configuration and auxiliary)
- (1) 10/100/1000 Ethernet port
- 1.5+ Gbps aggregate throughput
- 50W maximum power consumption
- (8) status LEDs that denote port speed, activity, RF status, and GPS synchronization
- Included pole mounting kit
Technical Specifications:
| airFiber AF-24 | |
|---|---|
| Dimensions Radio Box |
649 x 426 x 303 mm (25.55 x 16.77 x 11.93″) 725 x 520 x 410 mm (28.54 x 20.47 x 16.14″) |
| Weight Radio(Mount Included) Box |
10.5 kg (23.15 lb) 17kg (37.48 lb) |
| Operating Frequency | 124.05 – 24.25 GHz |
| Max.Power Consumption | 50W |
| Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Method | Passive Power over Ethernet |
| Supported Voltage Range | +42 to +58VDC, -48VDC |
| Certifications | CE, FCC, IC |
| Wind Loading | 480 N @ 200 km/hr (108 lbf @ 125 mph) |
| Wind Survivability | 200 km/hr (125 mph) |
| Mounting | Pole Mount Kit (Included) |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| LEDs | 8) Status LEDs: Data Port Speed Data Port Link/Activity Configuration Port Speed Configuration Port Link/Activity GPS Synchronization Modulation Mode Master/Slave RF Status (1) Two-Digit LED Display Calibrated in dBm |
| Interface | |
| Data Port | (1) 10/100/1000 Ethernet Port |
| Configuration Port | (1) 10/100 Ethernet Port |
| Auxiliary Port | (1) 10/100 Ethernet Port |
| System | |
| Maximum Throughput | 1.5+ Gbps |
| Maximum Range | 13+ km |
| Packets per Second | > 1 Million |
| Encryption | 128-Bit AES |
| Uplink/Downlink Ratio | 50% Fixed |
| Latency Full Duplex Mode Half Duplex Mode |
< 200 μs at Full Throughput < 2 ms at Full Throughput |
| MTU (Maximum Transmission Unit) | Up to 9600 |
