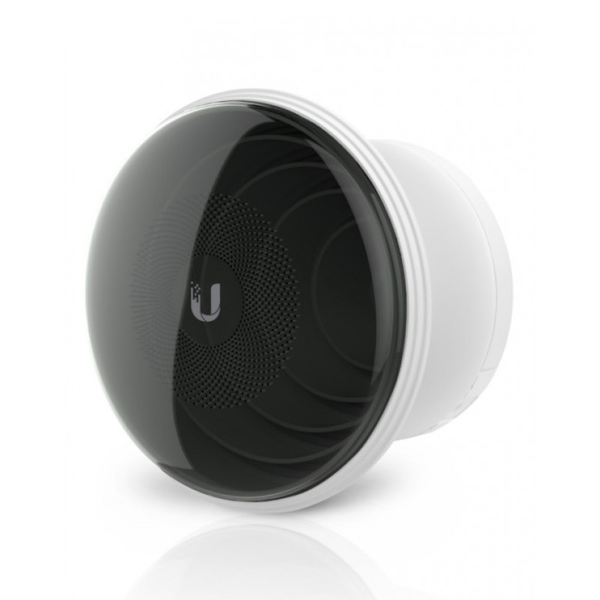

Ubiquiti IsoStation M5
The IsoStation M5 provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation M5. This feature is especially important in an increasingly congested RF environment.
With flexible sectorization for optional antenna beamwidths, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environment needs. The IsoStation M5 uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the IsoStation M5 is versatile and cost-effective to deploy.
Symmetrical horn antennas (30° and 45° versions) offer breakthrough scalability options for wireless systems. They are ideal for cluster sector installations with high co-location requirements. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.
Asymmetrical horn antennas (60° and 90° versions) are designed to have attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation.
Technical Specification:
| Dimensions | With Horn: 174 x 174 x 150 mm (6.85 x 6.85 x 5.91″) Without Horn: 131 x 131 x 65 mm (5.16 x 5.16 x 2.56″) |
| Weight | With Horn: 725.7 g (1.6 lb) Without Horn: 408.2 g (0.9 lb) |
| Max. Power Consumption | 6.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Gain | 14 dBi |
| Beamwidth | 45° (Default Horn) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | MIPS 74 Kc |
| Memory | 64 MB DDR2 |
| LED | (1) Power |
| Mounting | Pole-Mount |
| Wind Loading | 36 N @ 200 km/h (8.09 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24 kV Contact/Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5% to 95% Noncondensing |
| Certifications | FCC, IC, CE |
