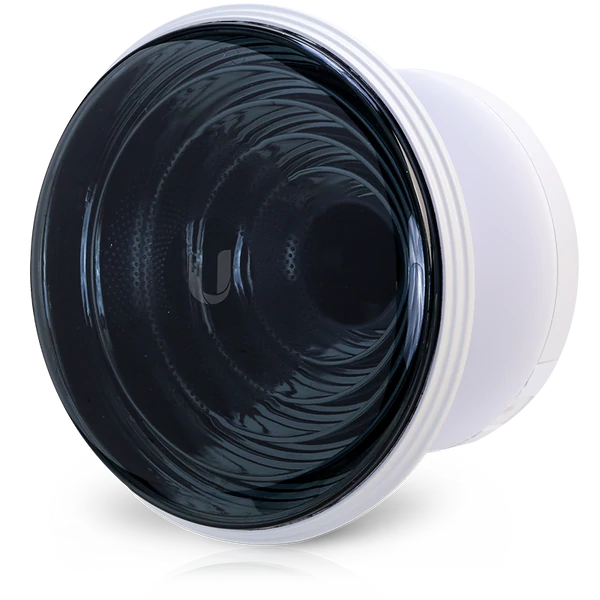

Ubiquiti IsoStation AC
Featuring a die-cast aluminum base and interchangeable horn antenna, the IsoStation ac with proprietary airMAX ac chipset and dedicated management Wi-Fi isolates beam communications between your devices. Ideal as an airMAX ac CPE in crowded RF environments such as urban areas.
The IsoStation 5AC provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation 5AC. This feature is especially important in an increasingly congested RF environment.
With flexible sectorization for optional antenna beamwidths, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environment needs. The IsoStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the IsoStation 5AC is versatile and cost-effective to deploy.
Symmetrical horn antennas (30° and 45° versions) offer breakthrough scalability options for wireless systems. They are ideal for cluster sector installations with high co-location requirements. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.
Asymmetrical horn antennas (60° and 90° versions) are designed to have attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation.
The IsoStation works under airOS® v8 software – the revolutionary operating system for Ubiquiti® airMAX ac products.
Features:
- New Design
- Improved Surge Protection
- Management WiFi Radio/UISP Mobile
- AirOS 8
Technical Specification:
| IsoStation AC 5 | |
|---|---|
| Dimensions With Horn Without Horn |
174 x 174 x 150 mm (6.85 x 6.85 x 5.91″) 131 x 131 x 65 mm (5.16 x 5.16 x 2.56″) |
| Weight With Horn Without Horn |
725.7 g (1.60 lb) 408.2 g (0.90 lb) |
| Gain | 14 dBi |
| Beamwidth | 45° (Default Horn) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 to 26VDC |
| Wind Loading | 36N @ 200 km/h (8.09lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Certifications | CE, FCC, IC |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 5250-5350 5240-5725 5725-5850 |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 |
| US/CA | 2412 – 2462 |
