Περιγραφή
Using airMAX ac technology, the NBE-5AC-500 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade. The PBE-5AC-500 also includes a protective radome to shield the radio from the elements. Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses. The form factor of the Ubiquiti NanoBeam features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments. The NanoBeam NBE-5AC-500 includes a protective radome to shield the radio from the elements.
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate and a 500 mm transmission range.

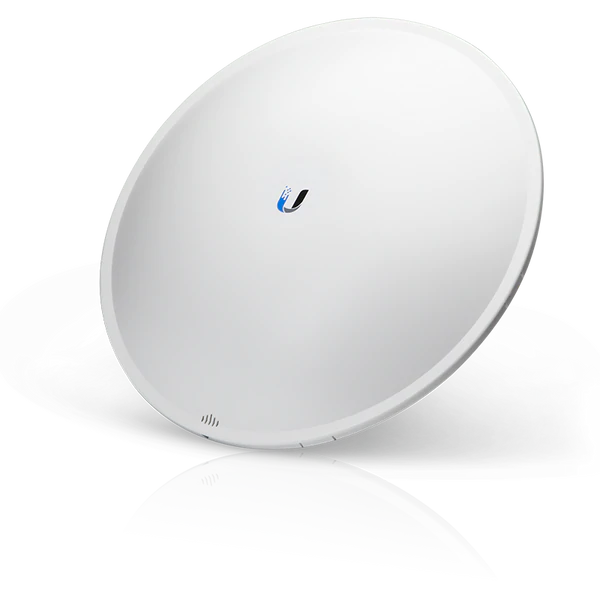

High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.
Features:
- Highly Efficient Antenna Beam Performance
- Custom Ubiquiti® airMAX® ac Processor
- Up to 450+ Mbps Real TCP/IP Throughput
- Innovative Snap and Lock Assembly
- Proprietary InnerFeed™ Technology
Technical Specification:
| PBE-5AC-500 | |
|---|---|
| Dimensions Radome Excluded Radome Included |
520 x 520 x 308 mm (20.47 x 20.47 x 12.13″) 525 x 525 x 315 mm (20.67 x 20.67 x 12.40″ |
| Weight Radome Excluded Radome Included |
2.35 kg (5.18 lb) 3.15 kg (6.95 lb) |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Max. Power Consumption | 8.5W |
| Power Method Supported | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Voltage Range | 20-26VDC |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 16 MB Flash |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Max. VSWR | 1.5:1 |
| Channel Sizes PtP Mode PtMP Mode |
10/20/30/40/50/60/80 Mhz 10/20/30/40 Mhz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Wind Loading | 264.6 N @ 96 km/h (60 lbf @ 60 mph) |
| Wind Survivability | 96 km/h (60 mph) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Gain | 27 dBi |
| Operating Frequency Mhz | |
| Worldwide | 5150 – 5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 5250 – 5350 5470 – 5725 5725 – 5850 |
