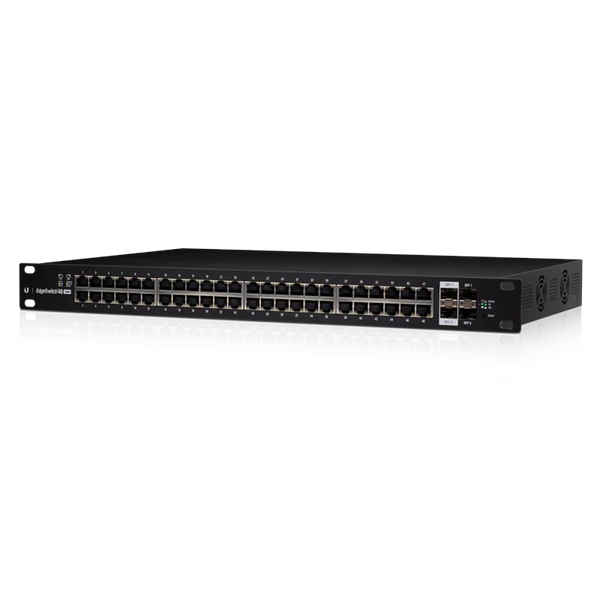

UBNT-ES-48-500W – EdgeSwitch 48 (500W Model)
Layer 2/3, PoE+ switch with (48) Gigabit RJ45 ports, (2) SFP+ ports, (2) SFP ports, and a 500W power supply.
Advanced Switching Technology for the Masses. Build and expand your network with Ubiquiti EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Features:
- (48) Gigabit RJ45 Ports
- (2) SFP+ Ports
- (2) SFP Ports
- (1) Serial Console Port
- Non-Blocking Throughput: 70 Gbps
- Switching Capacity: 140 Gbps
- Forwarding Rate: 104.16 Mpps
- Maximum Power Consumption: 500W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Rackmountable
Technical Specification
| Dimensions | 485.04 × 44.45 × 285.6 mm |
| Weight | 5.3kg |
| Total Non-Blocking Throughput | 70Gbps |
| Max. Power Consumption | 500W |
| Power Method | 100-240VAC/50-60Hz, Universal Input |
| Power Supply | AC/DC, Internal, 500W DC |
| LEDs Per Port RJ45 Data Ports SFP Data Ports |
PoE, Speed/Link/Activity Speed/Link/Activity |
| Networking Interfaces | 48x 10/100/1000Mbps RJ45 Ethernet Ports 2x 1Gbps SFP Ethernet Ports 2x 1/10Gbps SFP+ Ethernet Ports |
| Management Interface | Ethernet In/Out of Band |
| Certifications | CE, FCC, IC |
| Rackmount | yes, 1U |
| ESD/EMP Protection | Air: ±24kV, Contact: ±24kV |
| Operating Temperature | -5 to 40°C |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| PoE Per Port | |
| PoE Interfaces | POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-) 24VDC Passive PoE (Pins 4,5+,7,8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3at Mode | 50-57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
