Περιγραφή

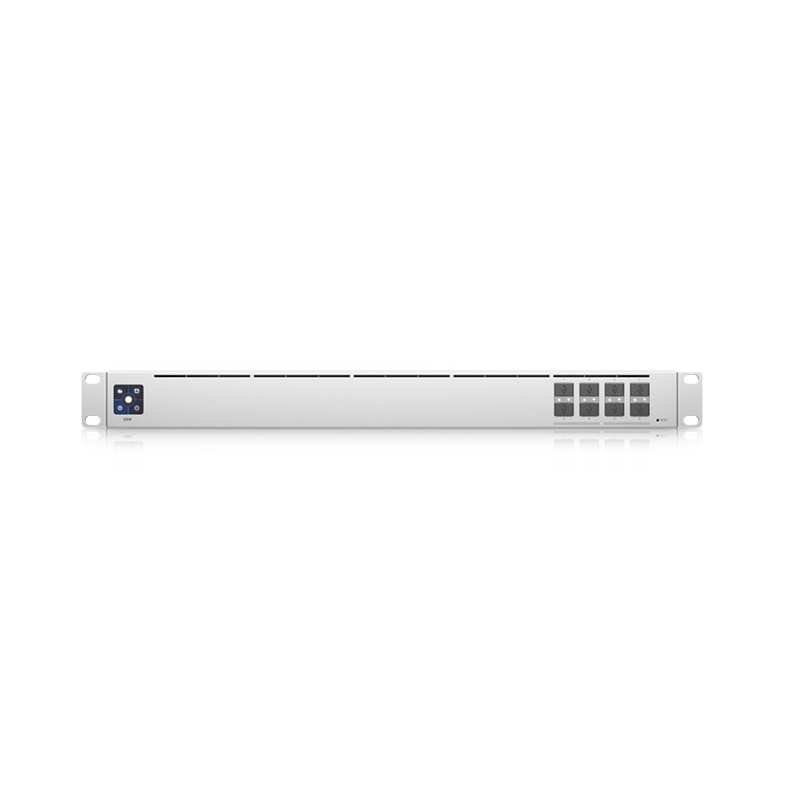

UniFi Switch Aggregation (USW-Aggregation)
UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7″ depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. Features:
- (8) 10G SFP+ Ports
- 160 Gbps switching capacity
- 1.3″ Touchscreen with AR switch management
- Fanless, 4.7″ depth compact enclosure
- 1U Rackmountable (kit included)
- Managed by UniFi Network Controller
Managed by UniFi Network Controller version: 5.14.12 or higher.
Technical Specifications:
| USW-Aggregation | ||
| Dimensions | 442.4 x 120 x 43.7 mm | |
| Weight Without mount With mount |
2.65 kg 2.74kg |
|
| Enclosure Material | SGCC Steel | |
| Hardware | ||
| Total Non-Blocking Throughput | 80 Gbps | |
| Switching Capacity | 160 Gbps | |
| Forwarding Rate | 119.04 Mpps | |
| Max. Power Consumption | 30W | |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz | |
| Power Supply | AC/DC, Internal, 36W | |
| Management Interface | Ethernet In-Band | |
| Modes | SMB Layer 2 Gigabit Ethernet Switch | |
| ESD/EMP Protection | Air: ± 16kV, Contact: ± 12kV | |
| Operating Temperature | -5 to 40° C (23 to 104° F) | |
| Operating Humidity | 10 – 90% Noncondensing | |
| Certifications | FCC, IC | |
| LED | ||
| System | ||
| Bootup Animation | Bootup in Progress | |
| Firmware Upgrade Icon | Firmware Upgrading | |
| Steady White | Factory Defaults, Awaiting Adoption | |
| Steady Blue | Device is Adopted | |
| SFP+ | White: 10G, 1G | |
