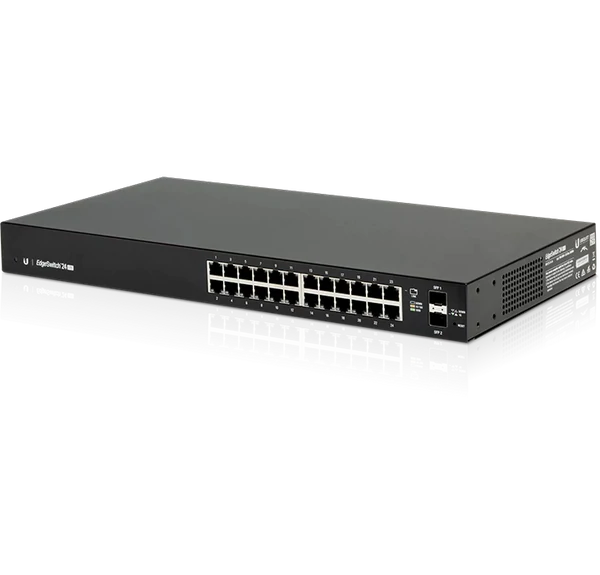

UBNT-ES-24-LITE – EdgeSwitch 24 (Non-PoE Model)
Layer 2/3 switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 25W power supply.
Advanced Switching Technology for the Masses. Build and expand your network with Ubiquiti EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Features:
- (24) Gigabit RJ45 Ports
- (2) SFP Ports
- (1) Serial Console Port
- Non-Blocking Throughput: 26 Gbps
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.69 Mpps
- Maximum Power Consumption: 25W
- Rack- or Wall-Mountable
- DC Input Option (Redundant or Stand-Alone)
Technical Specification
| Dimensions | 443 × 43 × 221 mm |
| Weight | 2.6kg |
| Total Non-Blocking Throughput | 26Gbps |
| Max. Power Consumption | 25W |
| Power Method | 100-240VAC/50-60Hz, Universal Input |
| Power Supply | AC/DC, Internal, 25W DC |
| LEDs Per Port RJ45 Data Ports SFP Data Ports |
Speed/Link/Activity Speed/Link/Activity |
| Networking Interfaces | 24x 10/100/1000Mbps RJ45 Ethernet Ports 2x 1Gbps SFP Ethernet Ports |
| Management Interface | Ethernet In/Out of Band |
| Certifications | CE, FCC, IC |
| Rackmount | yes, 1U |
| ESD/EMP Protection | Air: ±24kV, Contact: ±24kV |
| Operating Temperature | -5 to 40°C |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
