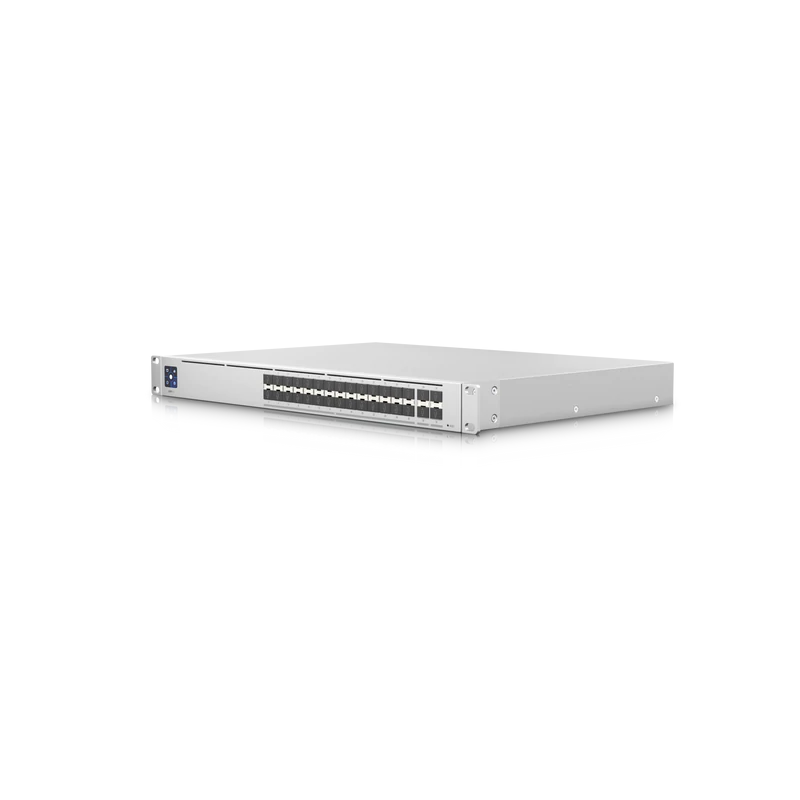

UniFi Switch Pro Aggregation (USW-Pro-Aggregation)
USW-Pro-Aggregation is a Fully Managed Layer 3 Switch, with (4) 25G SFP28 Ports and (28) 10G SFP+ Ports.
Featuring a 1.3″ LCM touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi application and mobile App, allowing you to easily build, scale and monitor your enterprise networks.
Features:
- (28) 10Gbps SFP+
- (4) 25Gbps SFP28 Ports
- 760 Gbps switching capacity
- (1) 1.3″ Touchscreen with AR switch management
- (1) Backup 12V DC input connector, SmartPower RPS
- Managed with UniFi Application Version: 6.1.25 or higher
Technical Specifications:
| Mechanical | |
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7″) |
| Weight Without mount With mount |
4.6 kg 4.7kg |
| Enclosure Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 380 Gbps |
| Switching Capacity | 760 Gbps |
| Forwarding Rate | 565.44 Mpps |
| Max. Power Consumption | 100W |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz USP-RPS DC input, 11.5VDC, 8.7A |
| Network Interface | 1/10 Gbps SFP+ Ethernet (4) 1/10/25 Gbps SFP28 Ethernet* |
| LCM Display | 1.3″ Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| LEDs | SFP28/SFP+: White, Link and Activity |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 3 10/25 G Fiber Switch |
| ESD/EMP Protection | Air: ± 16kV, Contact: ± 12kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
