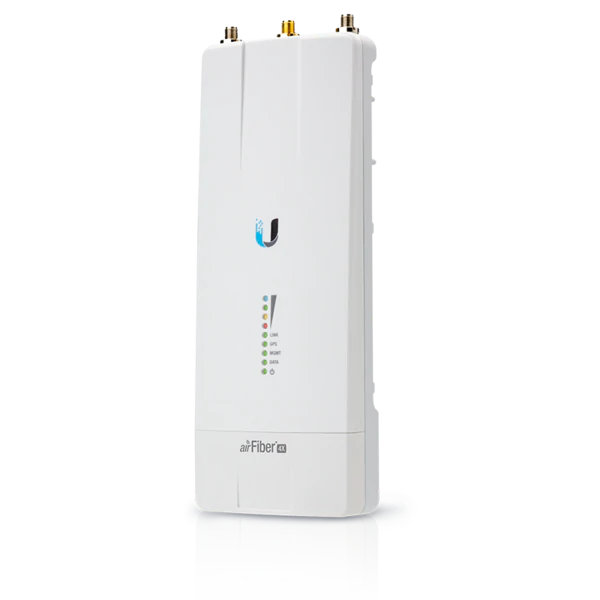

Ubiquiti AirFiber4X
Ubiquiti introduces the airFiber® AF-4X, Ubiquiti’s first licensed spectrum radio designed for the public safety sector. It meets the growing need of broadband capacity and optimizes use of the 4.9 GHz radio band with its industry-leading spectral efficiency and TDD throughput. The AF-4X allows you to customize airFiber backhaul links or upgrade existing Rocket® Point‑to‑Point (PtP) links.
Features:
- Designed for public safety applications
- 4.9 GHz radio band
- 200+ km transmission range
- Powered with the included 24V, 1A PoE Gigabit adapter
- (1) 10/100 Ethernet port
- (1) 10/100/1000 Ethernet port
- 687 Mbps maximum throughput
- 15W maximum power consumption
- Can be used to upgrade Rocket® Point‑to‑Point (PtP) links
Technical Specification:
| Dimensions | 224 x 82 x 48 mm |
| Weight with eqiupment | 0.35 kg |
| Maximum power consumption | 12W |
| Interfaces | 2x RP-SMA Weatherproof (CH0, CH1) 1x SMA Weatherproof (GPS) Data 10/100/1000 Ethernet Port Management Port 10/100 Ethernet Port |
| Power supply | 24V power adapter, 1A Gigabit PoE Adapter (included) |
| Mounting | airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (included) |
| Certifications | DFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
| Operating temperature | -40 to 55°C |
| Processor | INVICTUS IC |
| Maximum throughput | 525 Mbps |
| Maximum range | Up to 200 km |
| Wireless modes | Master/Slave |
| Operating frequency | 4700-4990 MHz (Dependent on Regulatory Region) |
| Channel bandwidth | 3,5/5/7/10/14/20/28/30/40/50/56 MHz |
| Max. Conducted TX Power | Up to 29dBm (Dependent on Regulatory Region) |
| Frequency Accuracy | ± 2,5 ppm without GPS synchronization ± 0,2 ppm with GPS synchronization |
