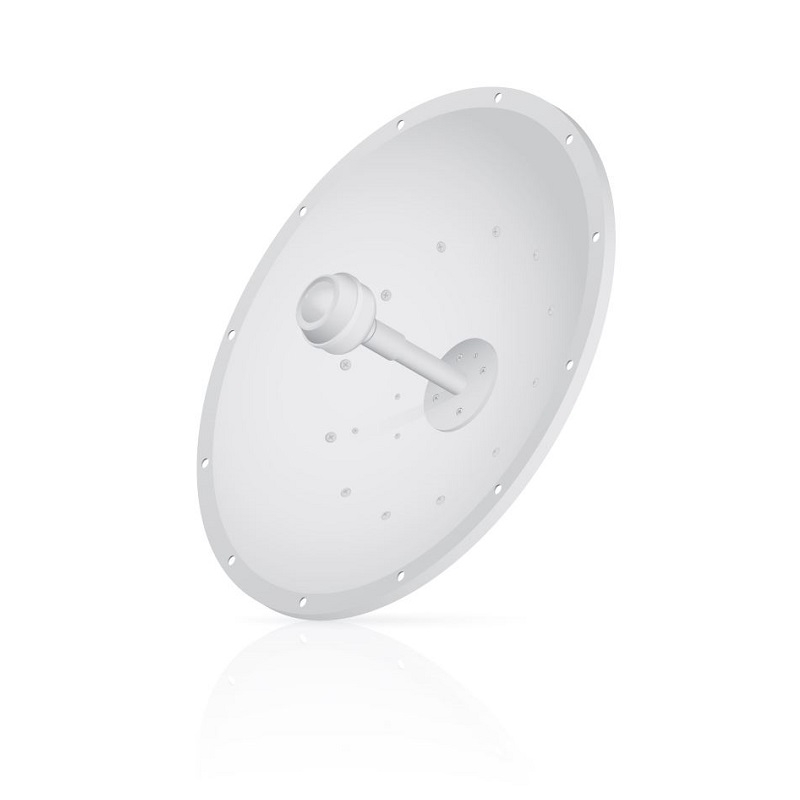

UBNT airFiber Dish AF-2G24-S45 24dBi
Special MIMO antenna for AF-2X, 2.4GHz, 24dBi, diameter 650mm
Special 2.4GHz directional antenna designed for AirFiber-2X with 24dBi gain and antenna diameter 650 mm. The narrow radiation pattern and polarization shifted by 45° against the standard H/V polarization guarantees the highest possible signal to noise ratio (SNR) and high resistance to interference from other boards.
Technical specification:
| Frequency: | 2.3 – 2.7 GHz |
| Polarization: | Dual-Linear |
| Gain: | 24dBi |
| Beam Angles (H/V): | 6.6°/6.8° |
| Connectors: | 2x RSMA female |
| VSWR: | <1.6 |
| Diameter: | 650 mm |
| Package Contents: | Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors |
