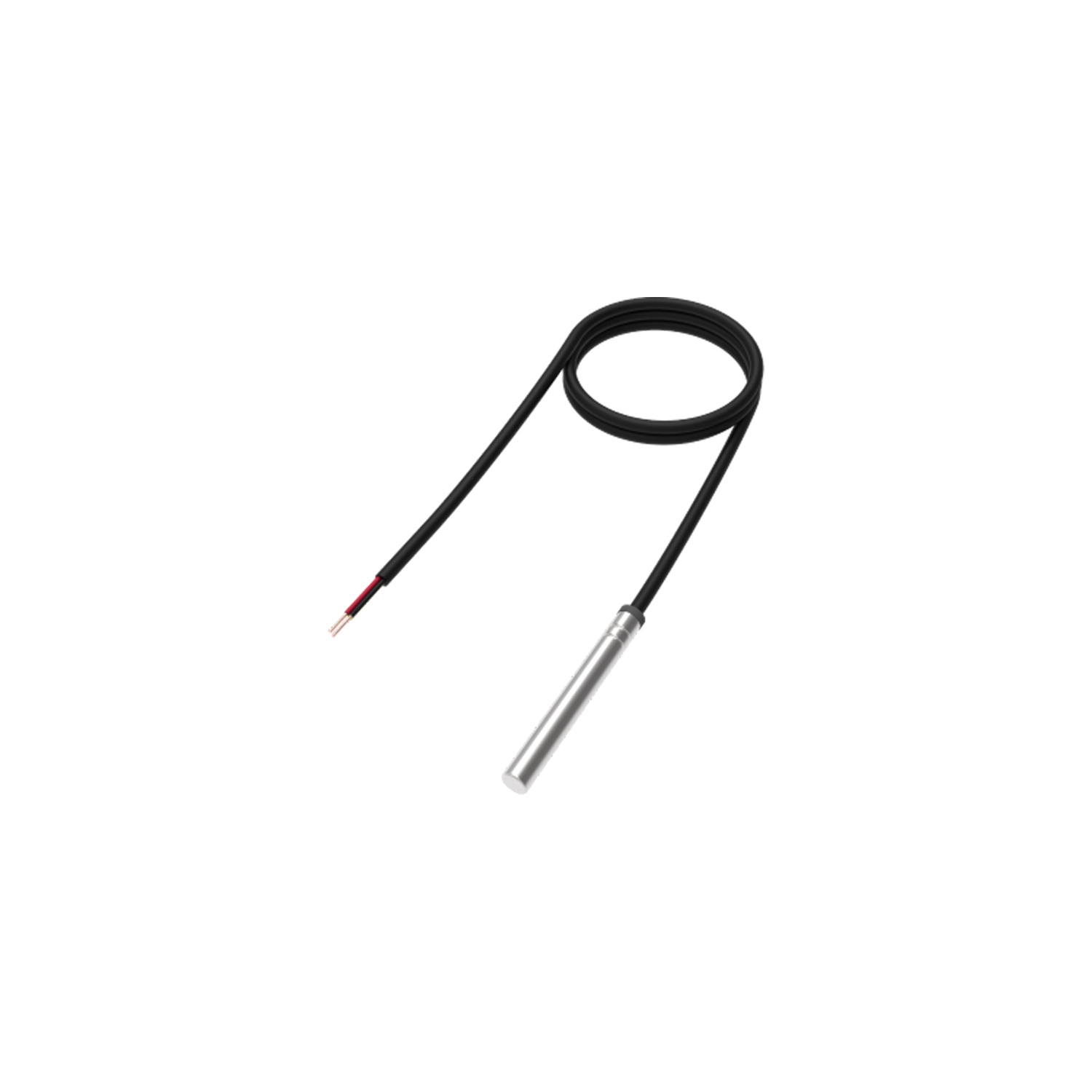

DS18B20 – Digital temperature sensor probe is based on Dallas DS18B20 sensor. An 8 meter cable length will not require any additional wires for even the most demanding installation places. These sensors operate in wide temperature range from -55°C to 125°C. It`s a perfect monitoring solution for the following use case:
- t
- Thermostatic controls – maintain temperature near a desired set point.
- Thermally sensitive systems – receive alerts when temperature enters or leaves a pre-defined value.
- Consumer products – be assured that goods which you are delivering will maintain high quality
t
t
| TECHNICAL CHARACTERISTICS | |
| Interface | 1 – wire |
| Accuracy | ±0.5°C from -10°C to +85°C |
| Thermometer error | -10°C to +85°C (±0.5) -30°C to +100°C (±1) -55°C to 125°C (±2) |
| Power Supply Range | 3.0V to 5.5V |
| Temperature Range | -55°C to 125°C (-67°F to +257°F) |
| Parasitic connection | Supported |
| Connection | No external components required |
| Serial code | Unique 64-Bit |
| Casing | Stainless Steel Tube, Waterproof |
| Design | Stripped & Tinned |
| Cable length | 8 meters |
