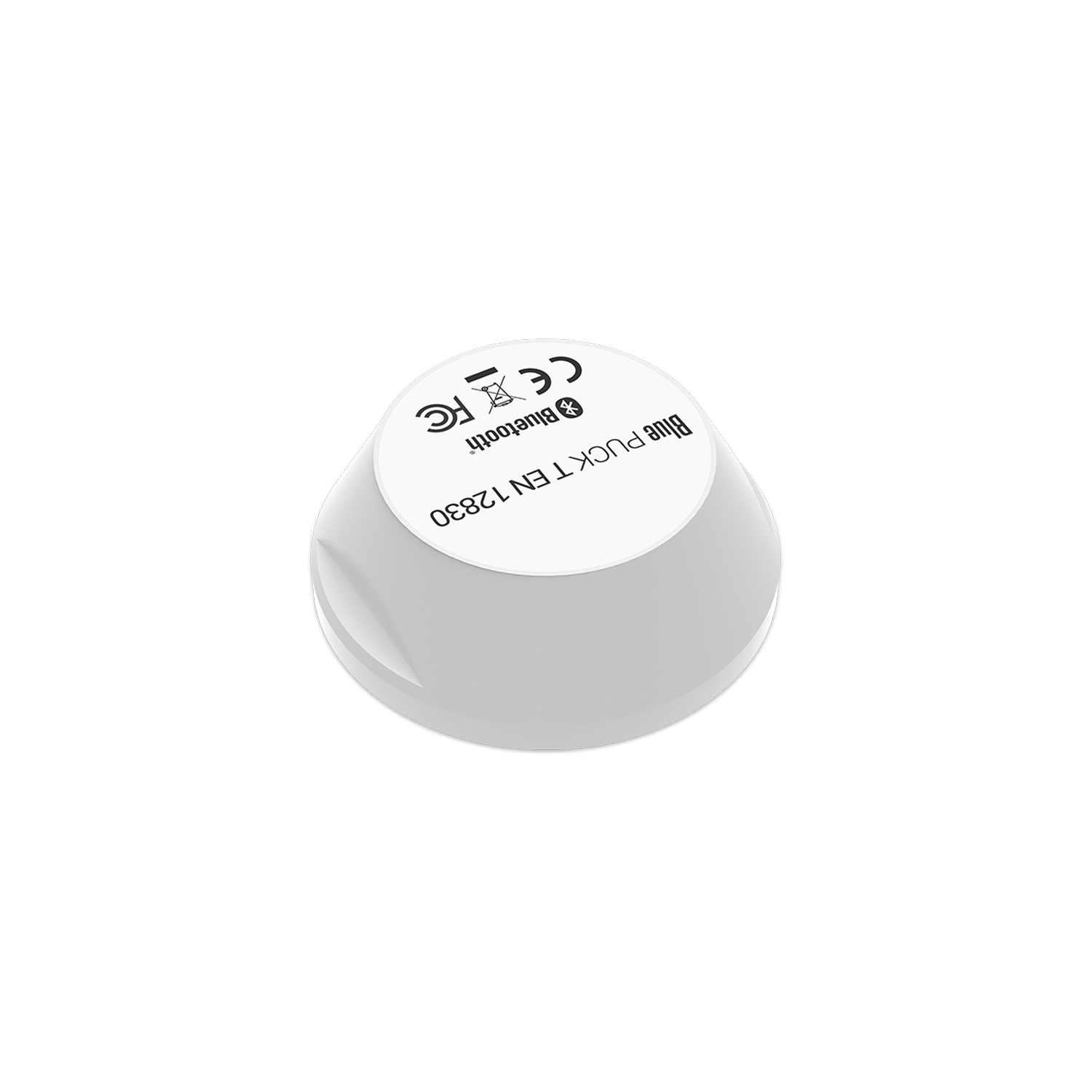

TELTONIKA BLUE PUCK T EN 12830 Extend device limits with new Bluetooth 4.0 LE EN12830 certified Temperature sensor

85,00 €

BLUE PUCK T EN 12830 – Perfect monitoring solution for a wide use in the cold chain logistics, freezers, refrigerators and other temperature sensitive cases. Sensor is EN12830-2018 certified, one on the first in the market. Sensor uses advanced Bluetooth 4.0 BLE technology to get d

Κωδικός προϊόντος: BLUE PUCK T EN 12830 Κατηγορία:

Περιγραφή

BLUE PUCK T EN 12830 – Perfect monitoring solution for a wide use in the cold chain logistics, freezers, refrigerators and other temperature sensitive cases. Sensor is EN12830-2018 certified, one on the first in the market. Sensor uses advanced Bluetooth 4.0 BLE technology to get data from long distance, it can work from internal battery up to 7.5 years! Collected temperature information of the surrounding environment is transferred to FMB device which has possibility to support up to four temperature sensors at the same time! EN 12830 standard is required for monitoring of temperatures in the means of transport, warehousing and storage of quick-frozen foodstuffs intended for human consumption, to ensure that temperature are recorded correctly. According to the EU regulation from 1 January 2006, all measuring instruments used for the purpose of monitoring the temperature, shall comply with EN 12830. Food operators shall keep all relevant documents permitting verification that the instruments referred to above conform to the relevant EN standard. Legal Regulation: COMMISSION REGULATION (EC) No 37/2005

BLUE PUCK T EN 12830 Specifications

TECHNICAL DATA
Battery Lifecycle up to 7,5 years (Beacon rate: 3 s / Power: +4 dBm / Download: 4000 values per day / Temperature: one measurement every 10 seconds)
Operating mode “Advertising” beacon mode: periodic data transmission (id + sensor data) Online mode: download up to 4,000 stored values
Bluetooth 2,4 GHz – Bluetooth Low Energy 4.0/4.2
NFC Secured NFC programming
Dimensions ø 57 mm base – Thickness 20 mm
Weight 42 g
Operating temperature -30°C to +85°C
Ingress Protection Rating IP68 (Waterproof)
Measuring range -30°C to +85°C
Accuracy ± 0,5 °C from -25 °C to 85 °C / ± 1 °C from -40 °C to -25 °C
Calibration Parametric calibration coefficients (Polynomial 2 °)
Resolution 0,0625°C
Transmission range Up to 500 meters (open field)
Transmission period 0,1 to 10 second (programmable)
Regulatory CE (Europe): EN 300 328/ EN 301 489 & EN 55032 / EN 62368-1 FCC (USA): FCC 15.247 / FCC PT 15B ISED/IC (Canada): RSS-247 / ICES-003 EN 12830-2018 RoHS certified
