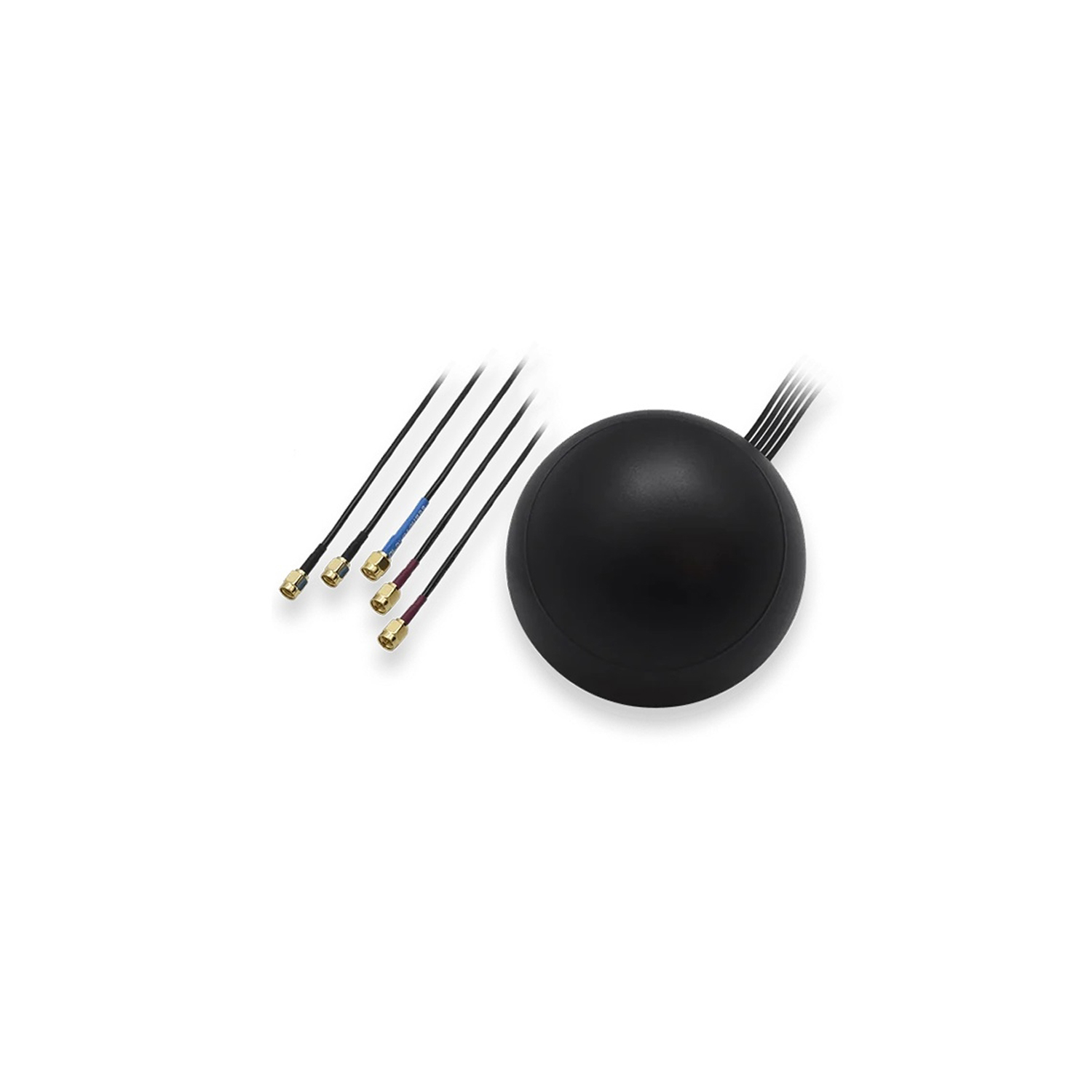

Combo MiMo MOBILE/GNSS/WIFI roof SMA Antenna Specifications
| GNSS Antenna | |
|---|---|
| Frequency Range: | 1575.42-1610 MHz |
| Polarization | RHCP |
| Impedance | 50 Ω |
| LNA Gain | 28±2 dB |
| LNA Noise Figure | < 1.5 dB |
| Supply Voltage | 3-5 VDC |
| Current Consumption | < 15 mA |
| LNA V.S.W.R | <2.0 |
| Connector | SMA Male |
| LTE MIMO Antenna | |
|---|---|
| Frequency Range: | 698-960/1710-2690 MHz |
| Polarization | Linear |
| Gain | 3 dBi |
| V.S.W.R: | <3.0 |
| Impedance: | 50 Ω |
| Connector: | 2x SMA Male |
| WiFi MIMO Antenna | |
|---|---|
| Frequency Range: | 2400-2483.5/4900-5825 MHz |
| Polarization | Linear |
| Gain | 2 dBi |
| V.S.W.R: | <2.5 |
| Impedance: | 50 Ω |
| Connector: | 2x RP SMA Male |
| Mechanical/Environmental | |
|---|---|
| Mounting Method: | Screw |
| Radome Ingress Protection rating: | IP67 |
| Radome Material: | ABS |
| Weight: | <550g |
| Housing Dimensions: | Ø 110×55 mm |
| Cable: | 5x RG174, 3000 mm |
| RoHS Compliant: | Yes |
