Περιγραφή

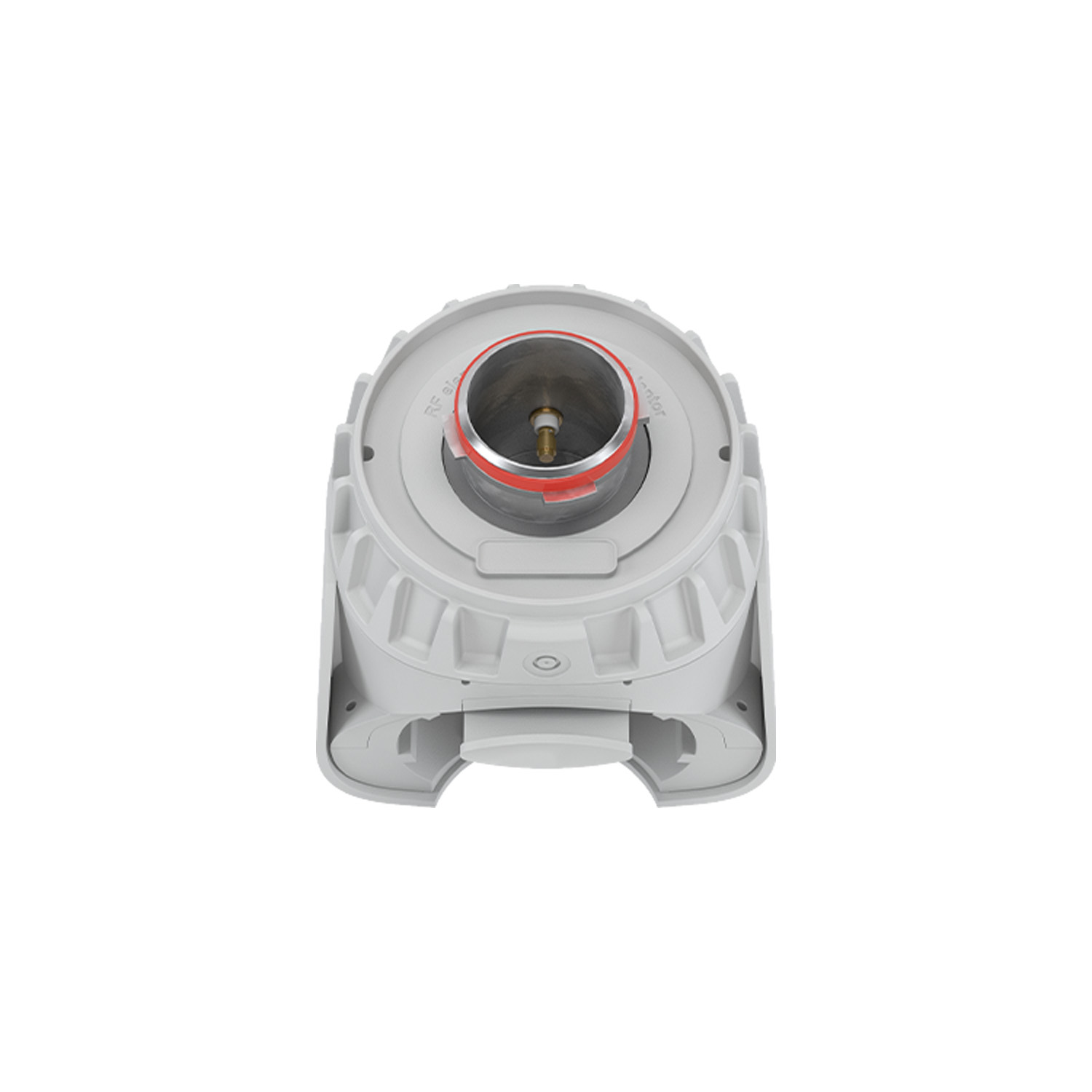

TP-ADAP-C5c TwistPort™ Adaptor for Mimosa C5c makes the radio compatible with all TwistPort™ Antennas. TwistPort™ Adaptors are equipped with our original quick-locking waveguide port. Connecting and disconnecting the C5c from the TwistPort™ Adaptor is very simple and requires no tools. TwistPort Adaptor adapts 3rd party radios to RF elements® proprietary TwistPortTM waveguide connector. Integration of the radio is smooth and requires no tools. Making 3rd party radios compatible with TwistPortTM allows for using the radio with any TwistPortTM antenna ever made and enable superior performance, noise immunity and network scalability. TwistPortTM Adaptor for C5c is compatible with Mimosa C5c radios, cover an ultra-wideband spectrum of 5180-6400 MHz and perform with superb efficiency with very well managed VSWR across the spectrum, it offers easy installation.
TP-ADAP-C5c Specifications
TECHNICAL DATA
| Antenna Connection | TwistPort – Quick-locking Waveguide Port |
| Radio Connection | 2x Slide-On RP-SMA |
| Materials | Insert – Aluminium Alloy Adaptor – UV stabilized and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Temperature | -40°C to +60°C (-40°F to +140°F) |
| Wind Survival | 160 km/h |
| Weight | 0.40 kg /0.9 lbs – single unit 0.52 kg /1.1 lbs – single unit incl. package 11 kg /24 lbs – carton (20 units) |
| Single Unit | Retail Box: 135 × 115 × 130 mm / 5.3 x 4.5 x 5.1 inch |
| 20 Units | Carton Box: 605 × 290 × 285 mm / 23.8 x 11.4 x 11.2 inch |
PERFORMANCE
| VSWR Max | 1.8 |
| Frequency Range | 5180 – 6400 MHz |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
COMPATIBLE WIRELESS PLATFORMS
| RF elements® | any TwistPort™ Antenna |
| Mimosa Networks | C5c |
PACKAGE CONTENTS TwistPort™ Adaptor INSTALLATION GUIDE click to download See also TPA-C5x
