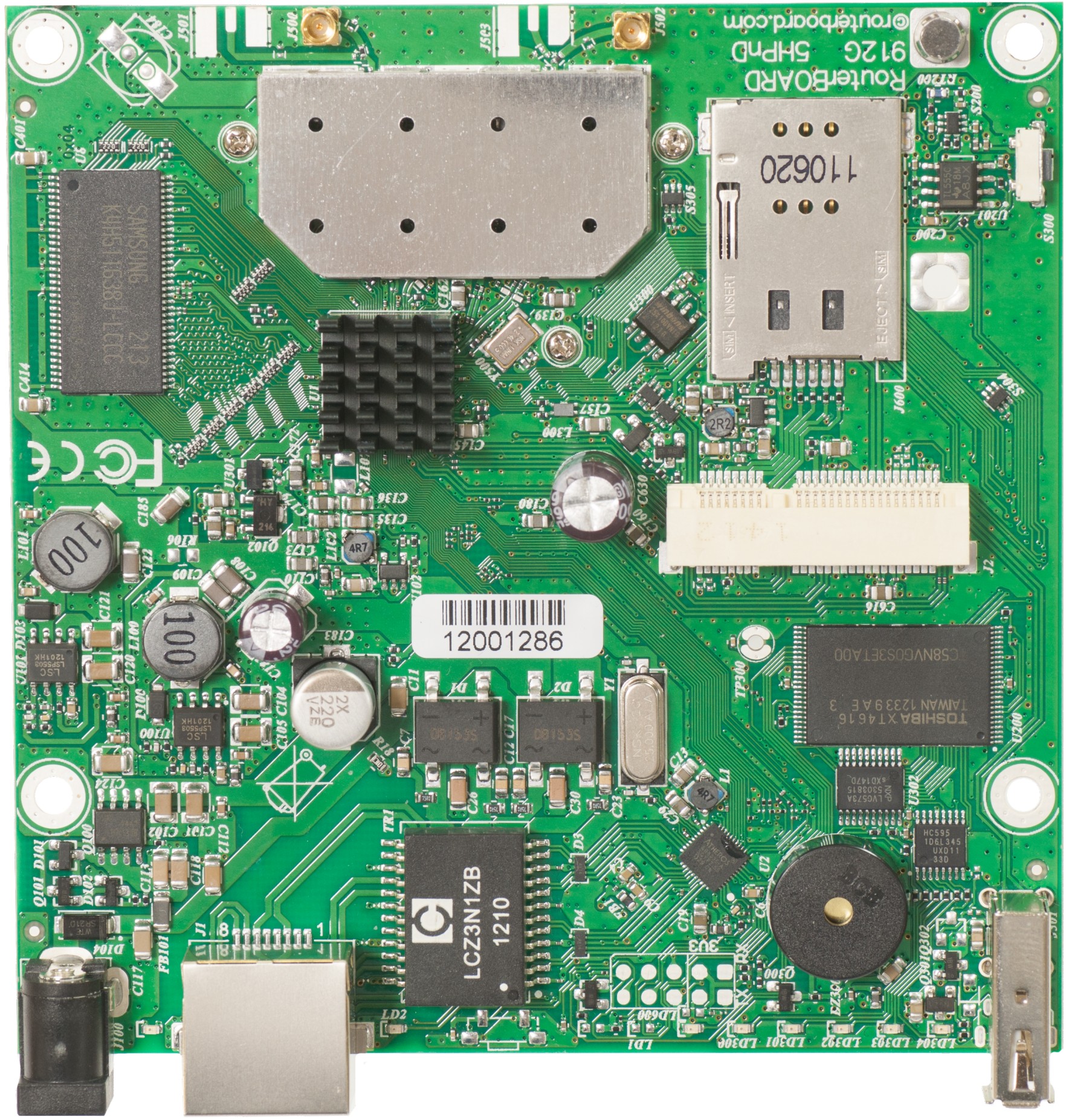

The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
It has built in 16kV ESD protection on both the Ethernet and the MMCX ports
– RB912UAG-5HPnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– RB912UAG-5HPnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Features :
- CPU Atheros AR9342 600MHz
- 64 MB SDRAM
- 1 Gigabit Ethernet port
- Power over Ethernet
- Operating System MikroTik RoterOS Level4 license
- 1x mPCI-e expansion slot
- 1x SIM card slot for 3G connectivity
Technical Specifications:
| Features | 1 Ethernet, 1 miniPCIe, USB, Additional memory, Gigabit, High power, Dual chain |
| CPU | Atheros AR9342 600MHz network processor |
| Memory | 64MB DDR2 onboard memory |
| Data storage | onboard NAND memory chip |
| Ethernet | One Gigabit port with Auto-MDI/X |
| Wireless | Built in 5GHz AR9283 802.11a/n, 2x MMCX connectors |
| Extras | reset, beeper, signal and status LEDs, SIM slot (requires 3g miniPCIe card) |
| Expansion | miniPCIe slot for 802.11 or 3G (using 3G disables the USB port), USB 2.0 port |
| Power options | PoE: 8-30V DC on Ether1 (Non 802.3af). |
| Dimensions | 105×105mm; Weight: 67g |
| Max power consumption | 14W at 24V |
| OS | MikroTik RouterOS, Level4 license (supports wireless AP mode) |
