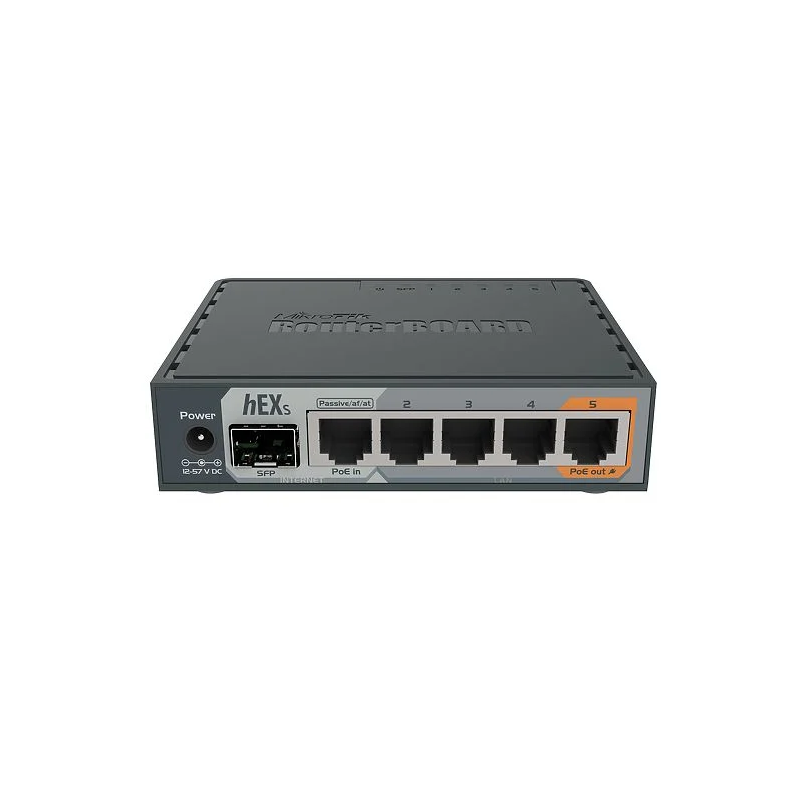

hEX S
is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Technical Specifications:
| Hardware | |
|---|---|
| CPU | MT7621A |
| CPU core count | 2 |
| CPU threads | 4 |
| CPU nominal frequency | 880 MHz |
| Dimensions | 113 x 89 x 28 mm; |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Operating temperature | -40°C .. +70°C |
| Powering | |
| Max Power consumption | 11W |
| PoE in | Passive, 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 2 (PoE-IN, DC) |
| PoE out | Passive up to 57V (Ether5) |
| Max total power out | 500 mA |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| SFP cages | 1 |
| Peripherals | |
| USB type | A |
| USB version | 2.0 |
| MicroSD slots | 1 |
