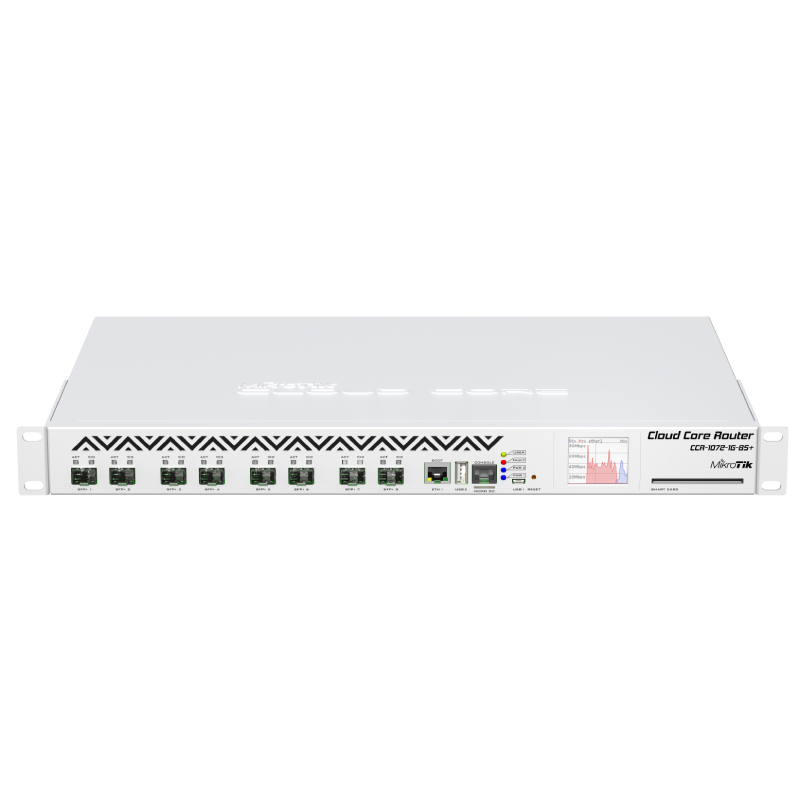

CCR1072-1G-8S+
new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at 1GHz, and to fully utilize this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports and single Ethernet port for management purposes.
The unit comes equipped with installed RouterOS L6, 16GB of built in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, microUSB, regular size USB, microSD and 2x M.2 slots for additional storage.
Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.
Technical Specifications:
| Processor | Tilera Tile-Gx72 |
| CPU nominal frequency | 1 GHz |
| CPU core count | 72 |
| Size of RAM | 16 GB |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 1 |
| Number of USB ports | 2 |
| Memory Cards | 3 |
| Memory card type | microSD, 2x M.2 |
| Supported input voltage | 12 V – 12 V |
| Voltage Monitor | Yes |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 443x315x40mm |
| Operating System | RouterOS |
| Operating temperature range | -20°C to +60°C |
| License level | 6 |
| Current Monitor | Yes |
| CPU | TLR4-07280DG-10CE |
| Max Power consumption | 125W |
| SFP+ ports | 8 |
| USB slot type | USB type A |
| Serial port | RJ45 |
