Περιγραφή

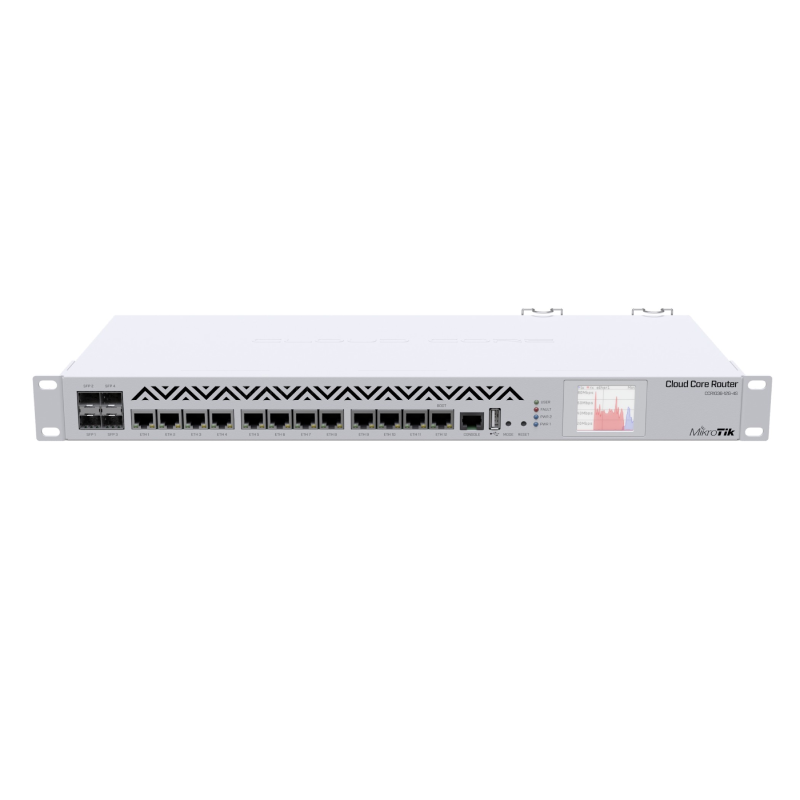

CCR1036-12G-4S
is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second – Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.
The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
Technical Specifications:
| CPU | Tilera Tile-Gx36 CPU (36-cores, 1.2Ghz per core) |
| Memory | Two SODIMM DDR slots, 2x2GB installed (no hw or software max limit) |
| Ethernet | Twelve 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X |
| SFP | Four 1.25G Ethernet SFP cage (Mini-GBIC; SFP module not included) |
| Expansion | microUSB port, host and device mode |
| Storage | 1GB Onboard NAND |
| Serial port | One DB9 RS232C asynchronous serial port |
| Extras | Reset switch; CPU fan; beeper; voltage, current and temperature monitoring |
| Power options | IEC C14 standard connector 110/220V (PSU included) |
| Board dimensions | 355x145mm55mm |
| Temperature | Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency |
| OS | MikroTik RouterOS v6 (64bit), Level 6 license |
