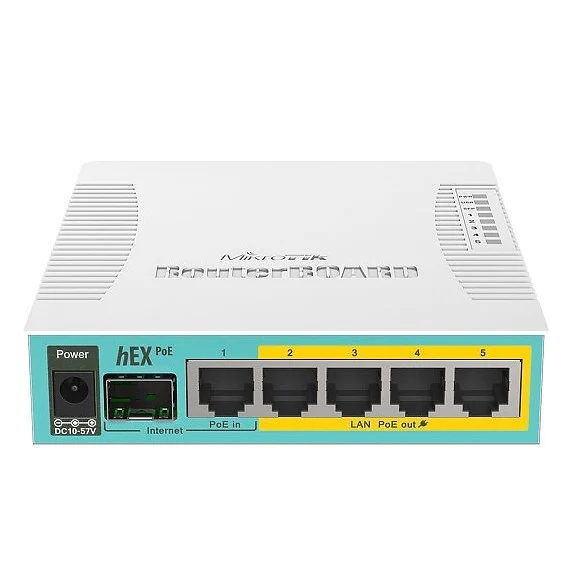

RouterBoard RB960PGS
hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
Technical Specifications:
| CPU | QCA9557 |
| CPU nominal frequency | 800 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 5 |
| PoE in | 802.3at |
| Supported input voltage | 12 – 57 V |
| Power output | On ports 2-5, Output: 1A max per port; 2A max total |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Current monitor | Yes |
| USB slot | Yes |
| Dimensions | 114 x 137 x 29mm |
| License level | 4 |
| Operating System | RouterOS |
| Max Power consumption | 9 W |
