RTB-BOARD-RB750P-PBr2

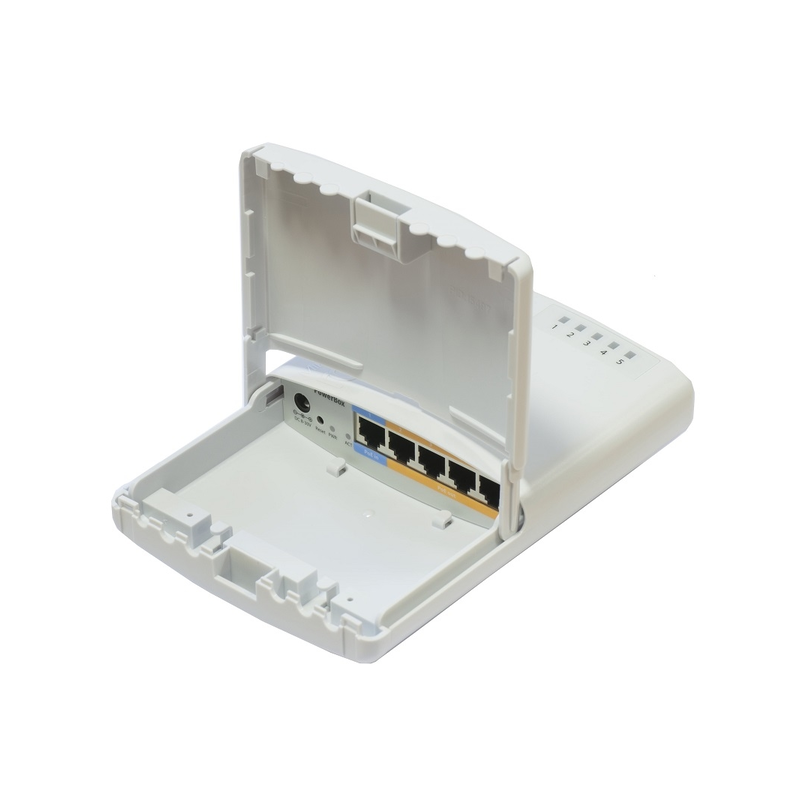

The PowerBox is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others.
Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.
The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adapters and cables to worry about!
Features:
- Waterproof outdoor case
- Processor QCA9531-BL3A-R 650MHz
- 64MB DDRAM, 128MB NAND
- 5 Ethernet 10/100 Mbit/s ports
- PoE output on four ports
Technical Specifications:
| CPU | QCA9531-BL3A-R 650MHz |
| Memory | RAM 64MB, NAND 128MB |
| Ethernet | Five 10/100 Mbit/s Fast Ethernet ports with Auto-MDI/X. Hardwaret |
| LEDs | 11x LED (5x User LED) |
| Power options | PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC |
| PoE Out | PoE passive on ports 2-5, same voltage as input. |
| Dimensions | 125x178x48mm |
| Power consumption | 2W at 24V |
| Operating Temp | -35°C .. +70°C |
| OS | MikroTik RouterOS, Level4 license |
| Package contains | RouterBOARD in case, PoE adapter |
