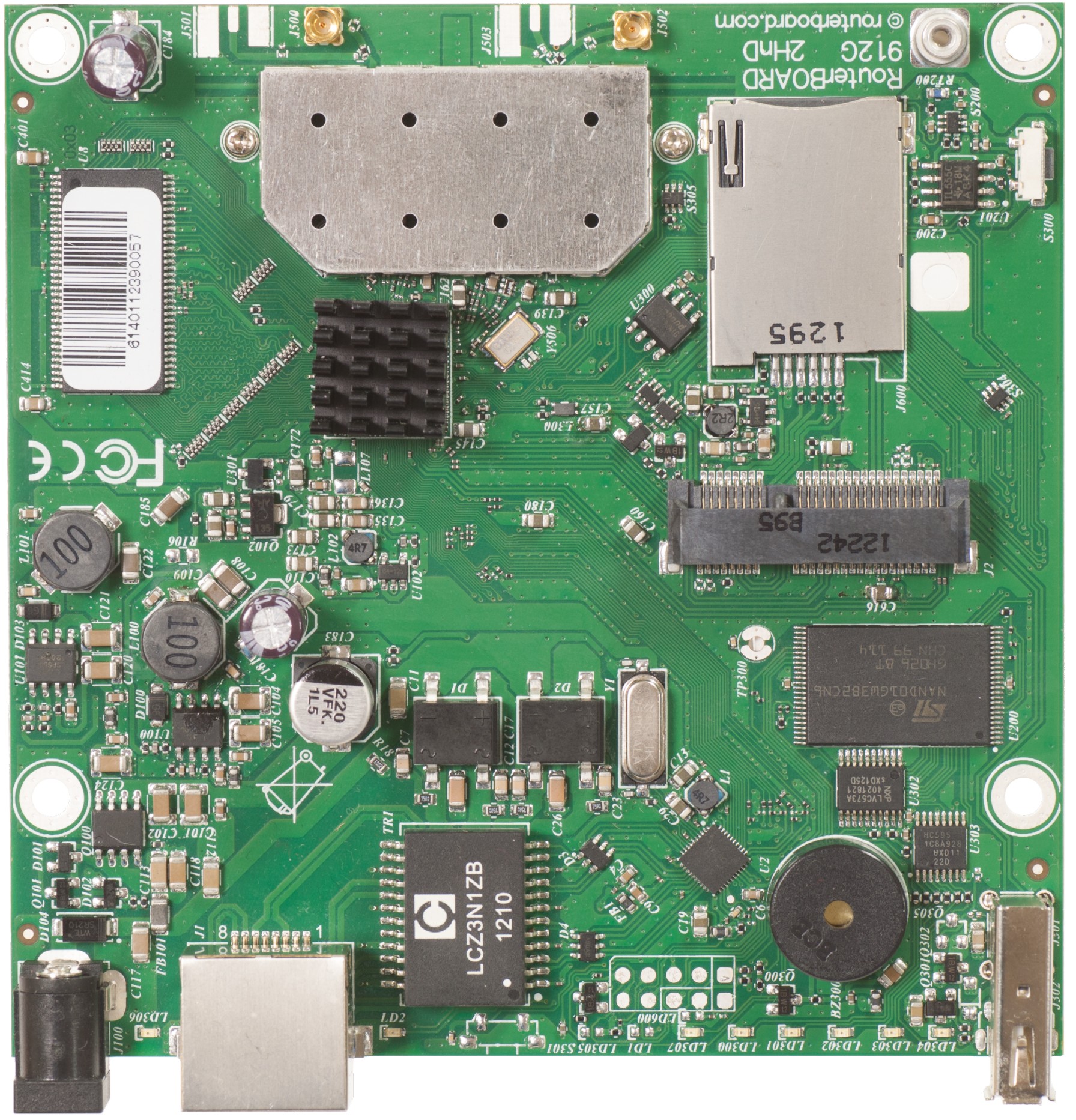

RB912UAG-2HPnD
The RB912UAG-2HPnD is a very versatile device. It is a small wireless router with an integrated 2.4GHz high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card.
The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.
Technical Specifications:
| Features | 1 Ethernet, 1 miniPCIe, USB, Additional memory, Gigabit, High power, Dual chain |
| CPU | Atheros AR9342 600MHz network processor |
| Memory | 64MB DDR2 onboard memory |
| Data storage | onboard NAND memory chip |
| Ethernet | One Gigabit port with Auto-MDI/X |
| Built in 2GHz | 802.11b/g/n, 2x MMCX connectors |
| Extras | reset, beeper, signal and status LEDs, SIM slot (requires 3g miniPCIe card) |
| Expansion | miniPCIe slot for 802.11 or 3G (using 3G disables the USB port), USB 2.0 port |
| Power options | PoE: 8-30V DC on Ether1 (Non 802.3af). |
| Dimensions | 105x105mm; Weight: 67g |
| Max consumption | 14W at 24V |
| OS | MikroTik RouterOS, Level4 license (supports wireless AP mode) |
| TX/RX at MCS0 | 30dBm / -96dBm |
| TX/RX at MCS7 | 24dBm / -78dBm |
| TX/RX at 6Mbit | 30dBm / -96dBm |
| TX/RX at 54Mbit | 27dBm / -80dBm |
| Frequency range | 2.4GHz |
