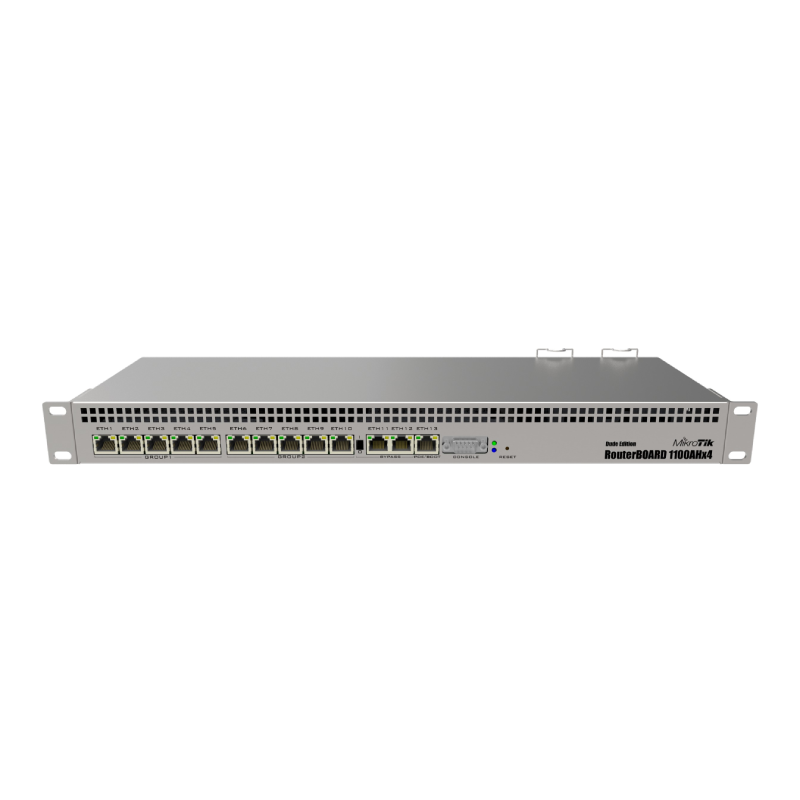

RouterBoard RB1100AHx4 Dude edition (RB1100AHx4)
New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Technical Specifications:
| CPU | AL21400, 4 cores, 1.4GHz |
| Size of RAM | 1GB |
| Storage type | NAND |
| Storage size | 128MB + 60GB m.2 SATA 3 drive included |
| 10/100/1000 Ethernet ports | 13 |
| Ethernet bypass | Ethernet 11/12 |
| Power jack | 2x IEC. 100V – 240V |
| DC telecom power | 20V – 57V (-48V supported) |
| PoE input | Passive, 802.3at. 20 – 57V |
| Redundant power supply | Yes |
| Voltage monitor | Yes |
| PCB temperature monitor | Yes |
| Current monitor | Yes |
| Dimensions | 444 x 148 x 47 mm |
| Operating system | RouterOS, level 6 license |
| Max Power consumption | 25W |
| microSD | 1 |
| SATA | 2x 2.5 inch SATA 3 |
| M.2 slots | 2x SATA 3 compatible (supports 2242, 2260 and 2280 sizes, M-key) |
| Serial port | RS232 |
| Beeper | Yes |
