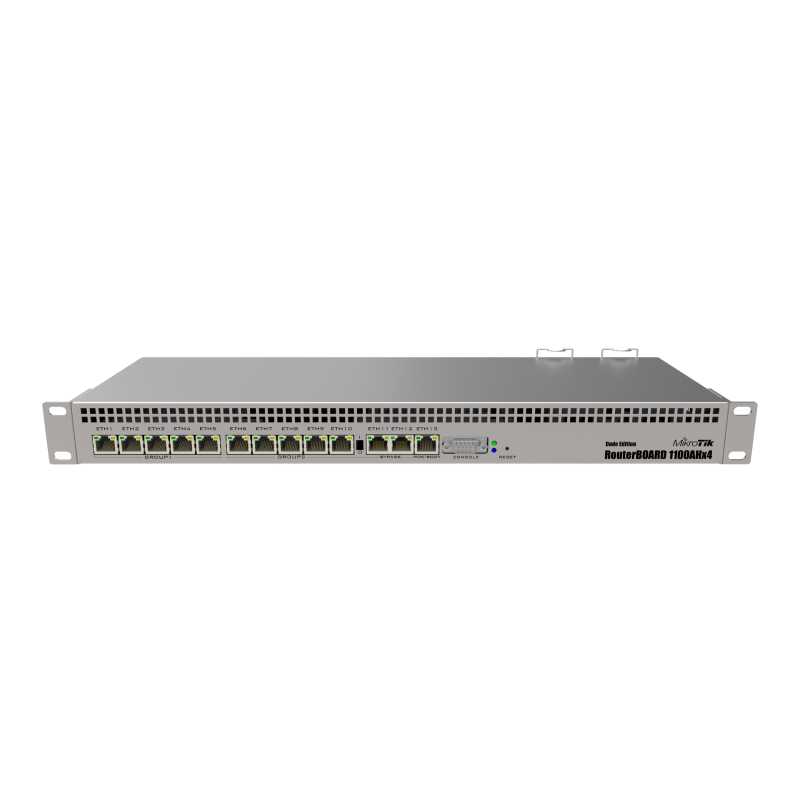

RouterBoard RB1100AHx4 (RB1100AHx4)
Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
Technical Specifications:
| CPU | AL21400, 4 cores, 1.4GHz |
| Size of RAM | 1GB |
| Storage type | NAND |
| Storage size | 128MB |
| 10/100/1000 Ethernet ports | 13 |
| Ethernet bypass | Ethernet 11/12 |
| Power jack | 2x IEC. 100V – 240V |
| DC telecom power | 20V – 57V (-48V supported) |
| PoE input | Passive, 802.3at. 20 – 57V |
| Redundant power supply | Yes |
| Voltage monitor | Yes |
| PCB temperature monitor | Yes |
| Current monitor | Yes |
| Dimensions | 444 x 148 x 47 mm |
| Operating system | RouterOS, level 6 license |
| Max Power consumption | 20W |
| microSD | 1 |
| Serial port | RS232 |
| Beeper | Yes |
