QRT 5

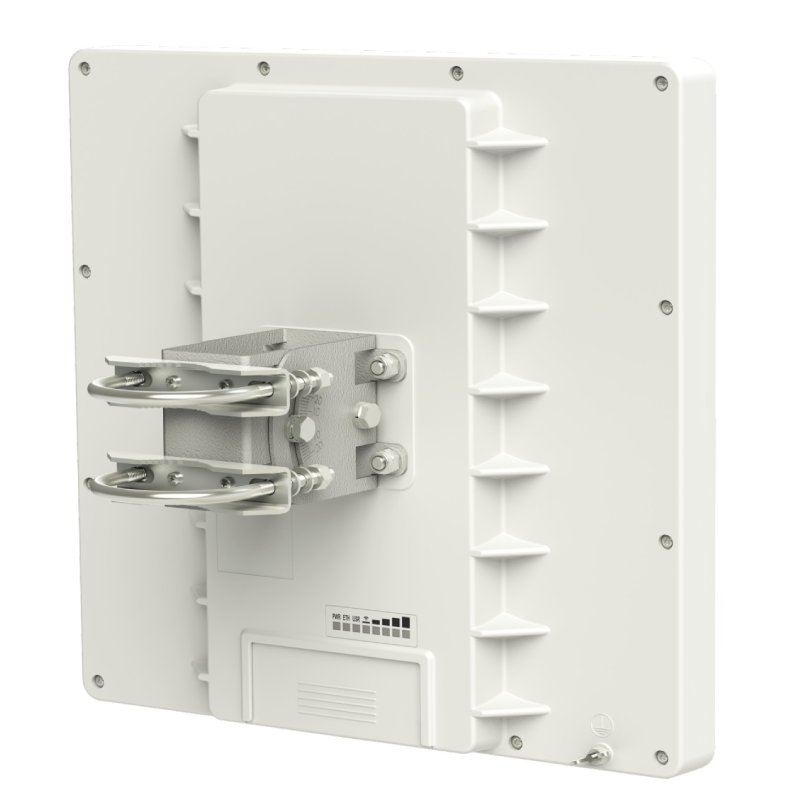

The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter.
Inside is the high power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, QRT is ideal for point to point links.
– RB911G-5HPnD-QRT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– RB911G-5HPnD-QRT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Technical Specifications:
| Features | 1 Ethernet, Gigabit, High power, Dual chain |
| Frequencies | 4.9-5.875 GHz |
| Gain | 23 ± 1 dBi |
| VSWR | 1.37 : 1 |
| 3 dB Beam-Width, H-Plane | 10.5° |
| 3 dB Beam-Width, E-Plane, typ. | 10.5° |
| Polarization | Dual, Vertical and horizontal |
| Port to Port Isolation | -50 dB |
| Cross polarization, min | -25 dB |
| Front to Back Ratio, min | 35 dB |
| CPU | Atheros AR9342 600MHz network processor |
| Memory | 64MB DDR onboard memory |
| Data storage | 128MB NAND memory chip |
| Ethernet | One Gigabit port with Auto-MDI/X |
| Wireless | Built in 5GHz 802.11a/n (AR9342) |
| Extras | beeper, signal and status LEDs, voltage and temperature sensors |
| Expansion | – |
| Power options | PoE: 8-30V DC on Ether1 (Non 802.3af). |
| Unit dimensions | 309x320x50mm |
| Max consumption | 11W at 24V |
| OS | MikroTik RouterOS, Level4 license (supports wireless CPE/PtP and AP mode) |
| Included | QRT wireless device, precision mounting bracket, U bolts, pole clamp, screw kit, 24V 0.8A power adapter, Gigabit PoE injector |
