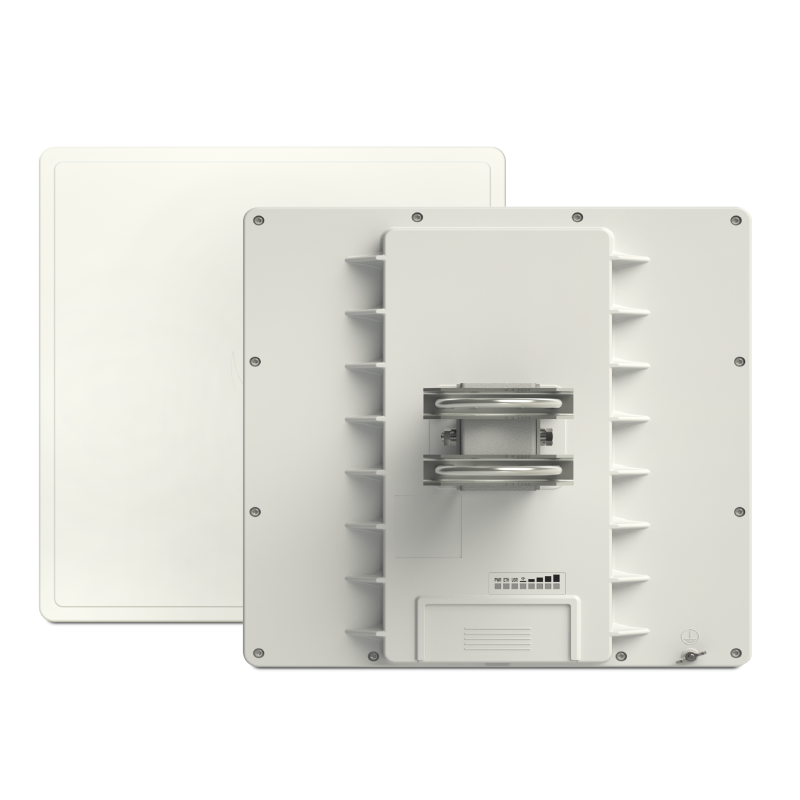

QRT 5 AC
The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n.
Inside is the high power RB911G-5HPacD dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless.
Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds.
– QRT 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– QRT 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Technical Specifications:
| Features | 1 Ethernet, Gigabit, High power, Dual chain |
| Frequencies | 4.9-5.875 GHz GHz |
| CPU | Atheros QCA9557 720MHz CPU |
| Memory | 128MB built-in DDR RMA memory 128MB Built-in NAND memory |
| Ethernet | 1x Gigabit port with Auto-MDI / X |
| Wireless | Built-in antenna, 5GHz radio module QCA9882-BR4A-R 802.11ac |
| Power | PoE: 8-30V DC on Ether1 (no 802.3af) |
| Dimensions | 309x320x50mm |
| Power consumption | 11W at 24V |
| OS | MikroTik RouterOS License Level 4 |
| Included | The wireless device QRT precise mounting bracket, screws U, set screws, fixings |
