RB911G-2HPnD-12S

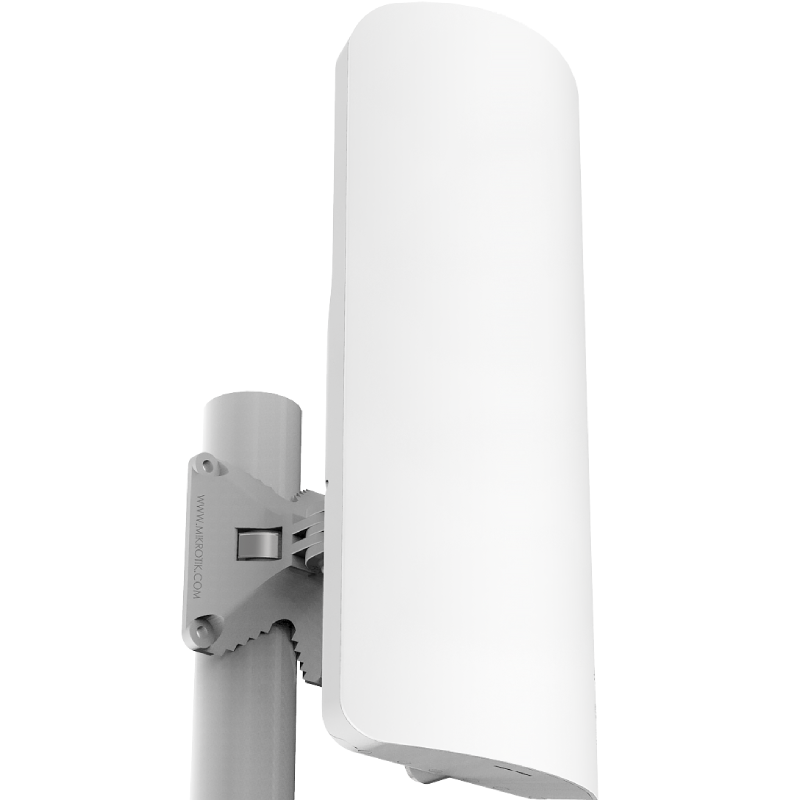

mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.
The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.
Technical Specifications:
| Hardware | |
|---|---|
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 140 x 348 x 82 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C .. +70°C |
| Powering | |
| Max Power consumption | 11W |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| Wireless | |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 12 |
| Wireless 2.4 GHz chip model | AR9342 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Wireless specifications | |
| Max. Transmit Power (dBm) | 30 |
| Max. Receive Sensitivity (dBm) | -100 |
