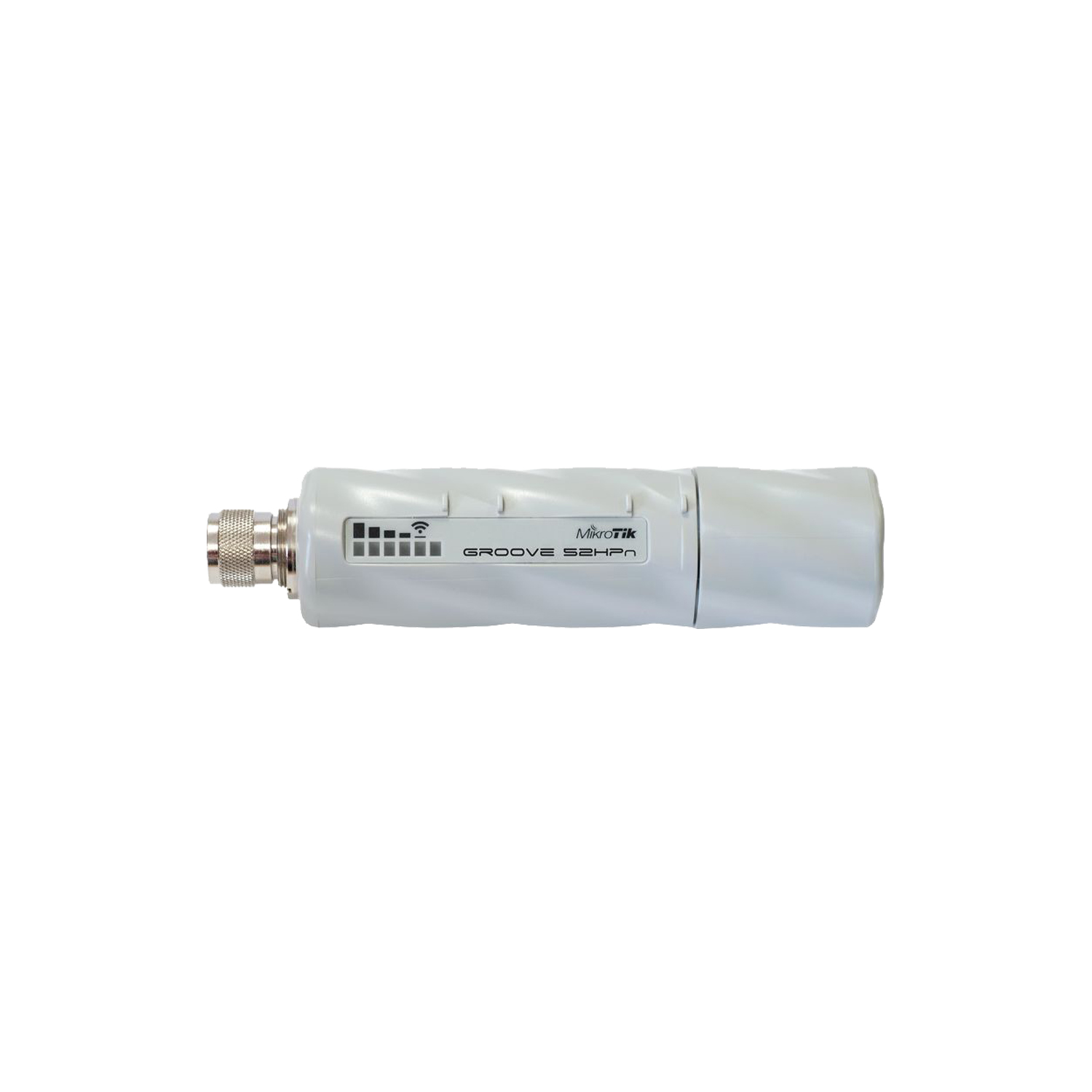

MikroTik RBGrooveA-52HPn, 27dBm, 600MHz, 64MB, 2GHz/5GHz, 1xEthernet, L4 + 6dBi Omni

69,35 €

Our smallest outdoor series model – a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power! GrooveA ha

Κωδικός προϊόντος: RBGrooveA Κατηγορία:

Περιγραφή

Our smallest outdoor series model – a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power! GrooveA has also supports AP mode. With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align. NEW- now comes packaged with a Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz)! Box contains: Groove unit, mounting loops, PoE injector, power adapter, Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz). We have two versions available. – RBGrooveA-52HPn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. – RBGrooveA-52HPn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details
Product code RBGrooveA-52HPn
Architecture MIPSBE
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 177x44x44mm, 193g
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 9-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W

Wireless

Details
Wireless 2.4 GHz/5 GHz Max data rate 150 Mbit/s
Wireless 2.4 GHz/5 GHz number of chains 1
Wireless 2.4 GHz/5 GHz standards 802.11b/g/n, 802.11a/n
Antenna gain dBi for 2.4 GHz/5 GHz 6
Wireless 2.4 GHz/5 GHz chip model AR9342
Wireless 2.4 GHz/5 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE/RED, FCC, IC, EAC, ROHS

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -97
11MBit/s 27 -91
6MBit/s 27 -93
54MBit/s 24 -75
MCS0 27 -93
MCS7 23 -70
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 27 -93
54MBit/s 23 -75
MCS0 26 -93
MCS7 22 -70

Included parts

    t

  • 6dBi / 8dBi omni antenna
  • t

  • PoE injector
  • t

  • 24V 0.8A power adapter
