Περιγραφή

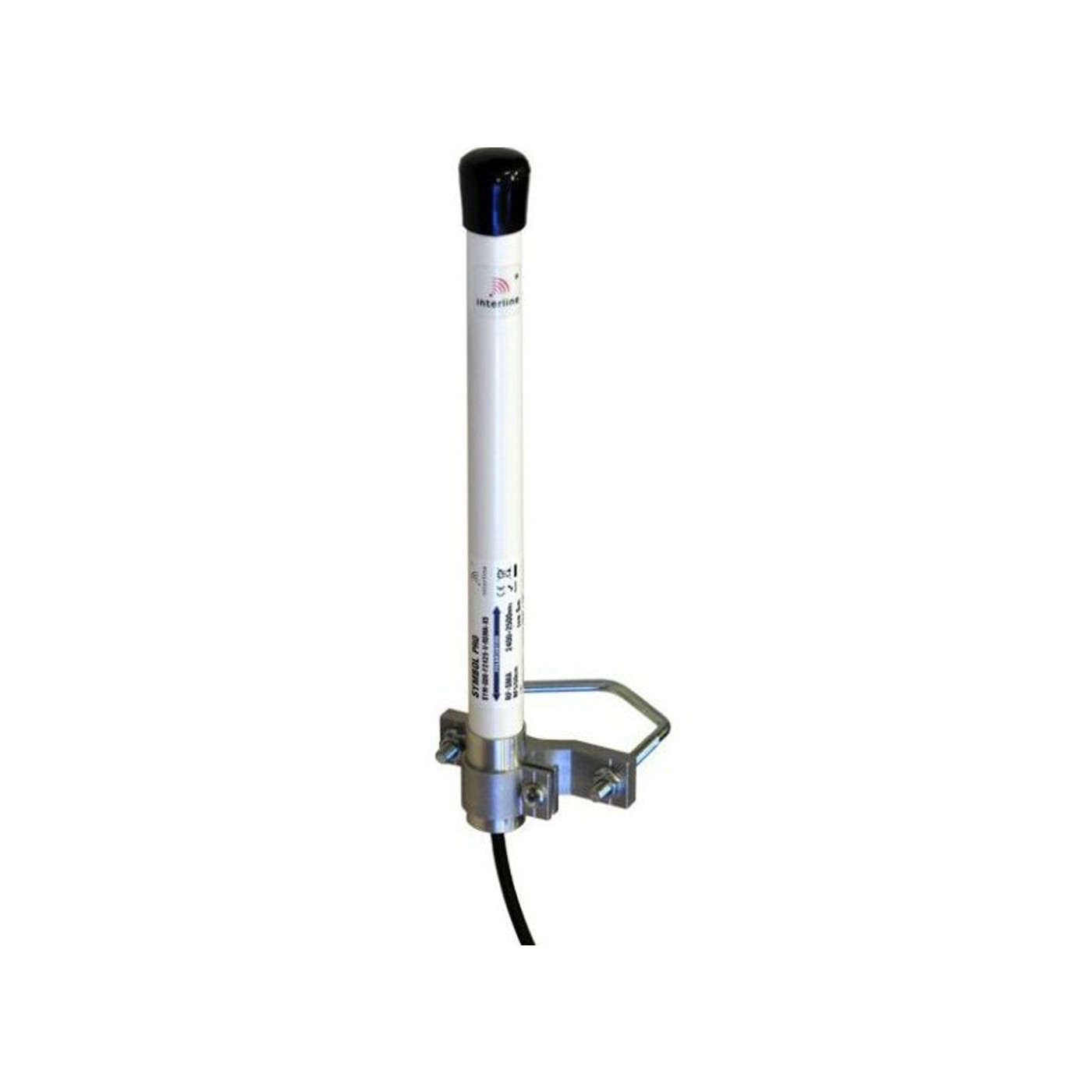

SYMBOL series of omnidirectional antennas has been specifically designed for the needs of mobility services in modern warehouses. Starting from a small service building warehouses through hypermarkets and ending with the distribution of high storage warehouses, or anywhere where coverage is needed, the antenna series SYMBOL prove themselves perfectly. With systems based on antennas SYMBOL series has already benefited companies such as Tesco, Castorama, Auchan, Kaufland, Practiker, OBI, and many others. Antennas are produced under the request of the client with any length of cable and the type of connectors.
Application: – High storage warehouses – Hale – Wholesale – Stores – Forwarding
| Compliance | |
|---|---|
| ETSI EN 302 326-3 (CE) | compliant |
| 2002/95/EC (RoHS) | compliant |
| 2002/96/EC (WEEE) | compliant |
| Electrical Characteristics | |
|---|---|
| Frequency (min) | 2 400MHz |
| Frequency (max) | 2 500MHz |
| Gain | 6dBi |
| VSWR (max) | 1.50:1 |
| Polarization | Polarization |
| Half Power Beam Width (-3dB) – horizontal | 360° |
| Half Power Beam Width (-3dB) – vertical | 30° |
| DC Ground | no |
| Impedance | 50Ω |
| Mechanical Characteristics | |
|---|---|
| Connector | N female |
| Length | 0.5m |
| Mounting Diameter | ø 38…51mm |
| Dimensions (excl. mount) | Dimensions (excl. mount) |
| Enviromental Characteristics | |
|---|---|
| Enviroment | Indoor/Outdoor |
| IP Rating | IP55 |
