Περιγραφή

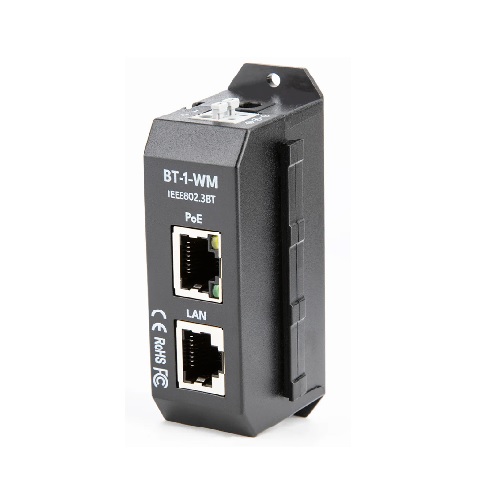

The Maxlink BT-1-WM is a simple active PoE injector supporting the 802.3af/at/bt standards as well as 2.5G Ethernet (10/100M/1/2.5G). It features a pair of shielded Ethernet connectors (1x input, 1x output), and power is delivered over 4 pairs (2 pairs powering is supported). The injector is not equipped with a voltage converter, meaning the output voltage is identical to the input voltage and the injector can deliver up to 90W of power. Current limitation per port is max. 1.61 A. Power can be supplied via a standard 5.5 / 2.1mm DC connector or via a terminal block that accepts wires with a cross-section of AWG16-20. Thanks to its clever design, injectors can be combined into compact units and mounted not only on a wall but also on a DIN rail. A DIN rail bracket is included in the package. Specifications
| Ethernet speed [Mb/s] | 10/100/1000/2500 |
| Gigabit LAN | Yes |
| Pin powering | 1,2,4,5 (+), 3,6,7,8 (-) |
| Output Power / 1 port [W] | 90 |
| PoE-Out standards | 802.3af, 802.3at, 802.3bt |
| PoE Out ports | 1 |
| Output Voltage [V] | 48 .. 57V DC |
| LED indication | Yes |
| Operating temperature [°C] | 0 up to 50 |
| Width [mm] | 30 |
| Depth [mm] | 42 |
| Height [mm] | 88 |
