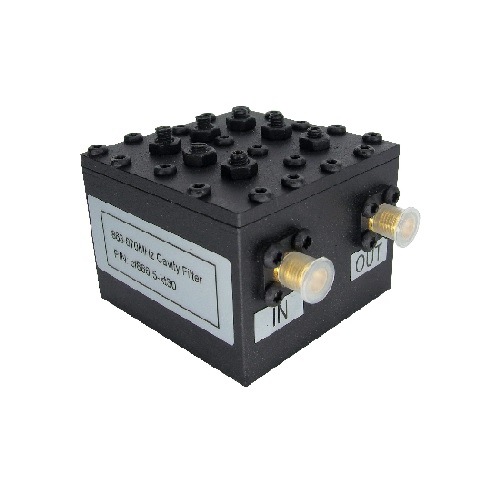

The cavity filter RFM-FLTR-868-CVT can attenuate any out-of-band interference. It will attenuate transmissions from nearby cellular band.
Specifications
| Frequency range | 863 – 870 MHz |
| Signal loss | ≤ 1.0 dB |
| Passband Ripple | 0.2 dB |
| VSWR | ≤ 1.20 |
| Rejection | ≥ 40 dB @ 833 MHz; ≥ 44 dB @ 903 MHz |
| Impedance | 50 Ohm |
| Power | 30 W average RF power (max) |
| Dimensions | 54 × 54 × 45 mm |
| Weight | 220 gr |
| Temperature | -10 to 50 °C |
| IP-Rating | IP50 |
| Connector type | 2 × SMA female |
| Installation environment | Indoor |
