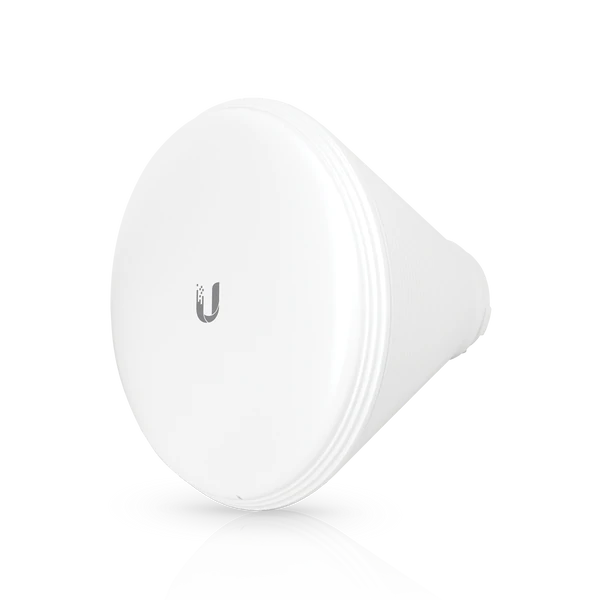

UBNT-PRISMAP-5-30
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.
Key features
- Designed for increased co-location performance
- Beamwidth 30°
- Designed for use with PS-5AC, IS-5AC, and IS-M5
- Single button release for ease of changing antennas
- Newly designed horn for improved beam shaping
- Ideal for co-location requirements.
Technical Specifications:
| Horn-5-30 | |
|---|---|
| Dimensions | Ø 221.4 x 184.2 mm (8.71 x 7.3″) |
| Weight | 1.1 kg (38.8 oz) |
| Supported Frequency Range | 5.15 – 5.85 GHz |
| Gain | 19 dBi |
| HPOL Beamwidth | 30° |
| VPOL Beamwidth | 30° |
| Elevation Beamwidth | 30° |
| Maximum VSWR | 1.7:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
