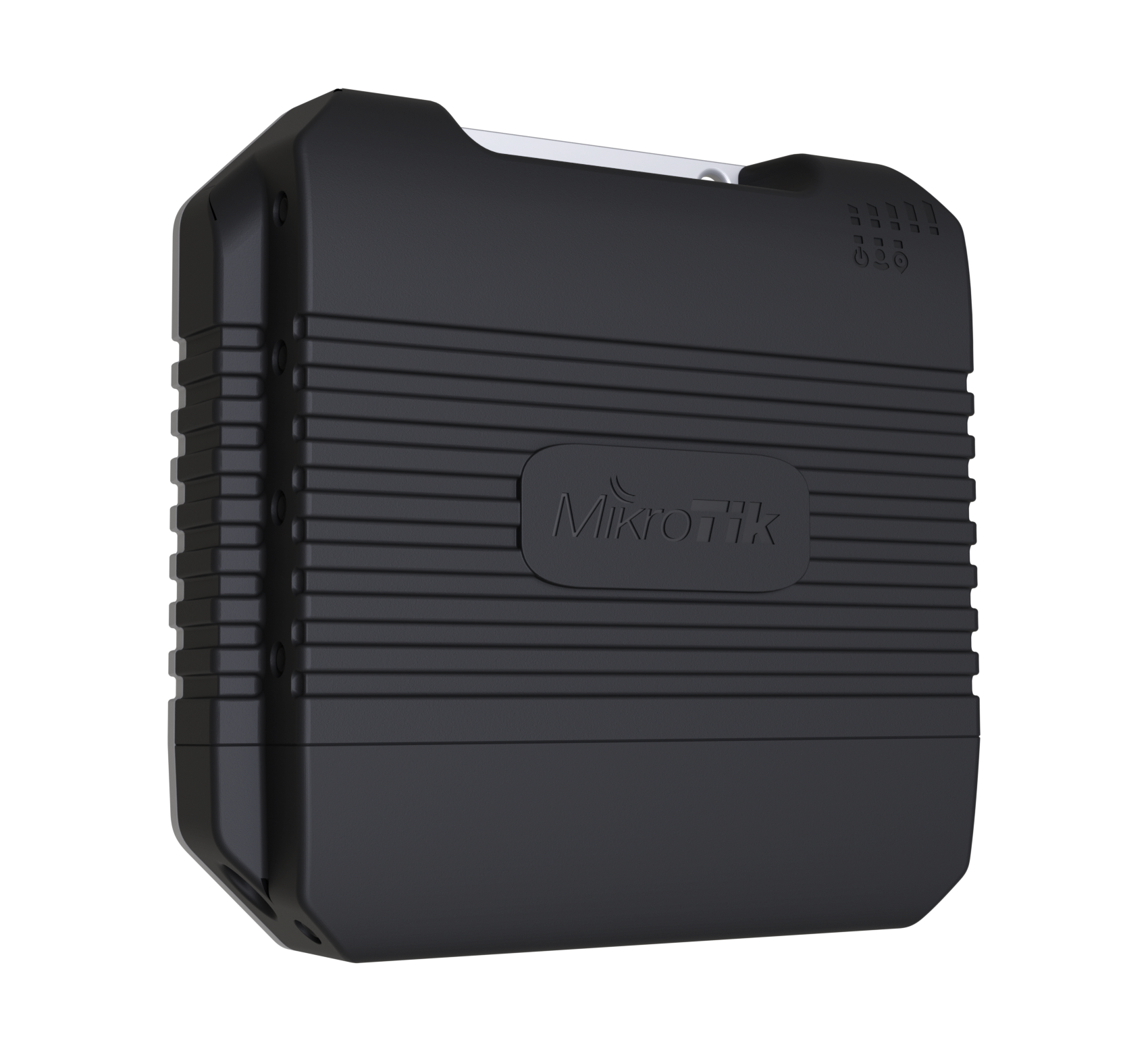

LtAP (RBLTAP-2HND)
The new LtAP is a compact weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has high power 2.4 GHz 802.11b/g/n wireless and Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.
The unit comes with a two miniPCIe slots, offering many expansion options. For example, you can install LTE modem of your choice for LTE backup and 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE.
LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C° to +70 C°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The new LtAP is more than an access point – it is what you need it to be wherever you need it to be.
Technical Specifications:
| CPU | Dual-core MediaTek MT7621 880 MHz |
| RAM | 128 MB |
| Storage | 16 MB flash |
| Ethernet | 1x 10/100/1000mbps |
| Wireless | 2.4 GHz 802.11b/g/n dual-chain |
| Wireless antenna | 2.5 dBi |
| LTE antenna | 4 dBi (with u.FL connector) |
| Antenna beam width | 360° |
| LTE | No LTE modem (2x miniPCIe slots free) |
| Powering | DC jack or automotive connector 12 – 30 V Passive PoE 12 – 30 V |
| Dimensions | 170 x 162 x 40 mm |
| Operating temperature | -40°°C .. +70°C |
| Operating system | RouterOS, License level 4 |
| Mini SIM slots | 3 |
| MiniPCIe slot 1 | Top slot supports PCIe and USB 2.0 cards, but is shared with the USB 2.0 type A |
| MiniPCIe slot 2 | Bottom slot supports only USB (2.0 and 3.0) miniPCIe modems (no PCIe support) |
| USB port | 1x USB 2.0 port type A (can only be used if miniPCIE slot 1 is not used) |
| Built-in | GPS Yes (external antenna option via MMCX connector) |
| Serial port | RS232 |
| Max power consumption | 24 W |
