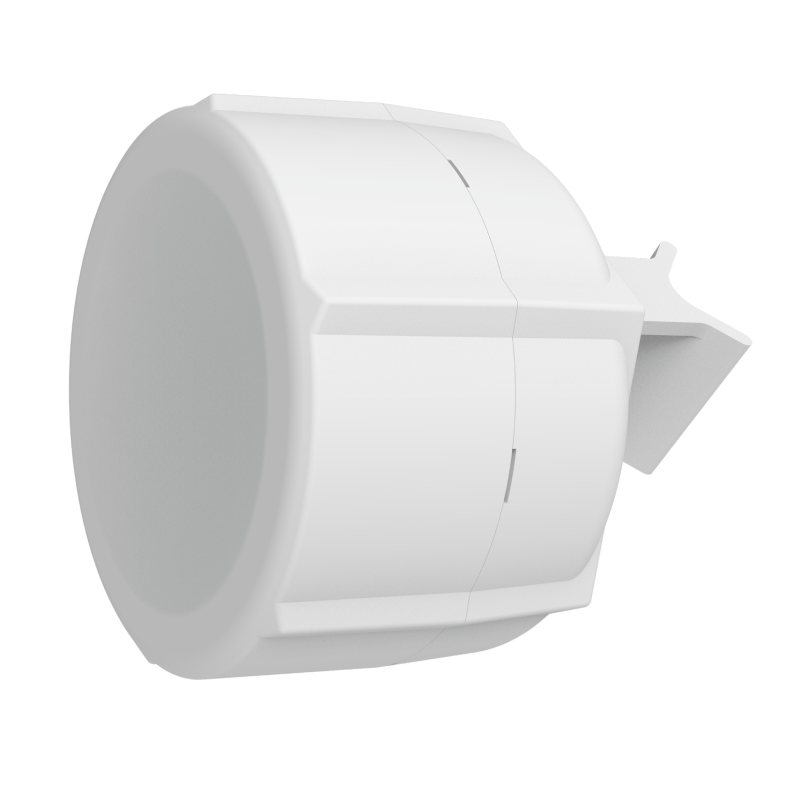

RouterBoard SXT LTE kit (RBSXTR&R11e-LTE)
The SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.
The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.
RBSXTR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.
Technical Specifications:
| CPU nominal frequency | 650 MHz (QCA9531) |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| Storage | 16 MB NAND |
| 10/100 Ethernet ports | 2 |
| LTE bands | 1, 2, 3, 7, 8, 20, 38 and 40 |
| Antenna gain | 9 dBi |
| Antenna beam width | 90° |
| LTE chip model | GDM7240CB20BGT |
| PoE in | Yes, on Ether1 |
| PoE Out | On Ether2, max out per port output (input < 30 V): 600 mA max out per port output (input > 30 V): 400 mA |
