Περιγραφή

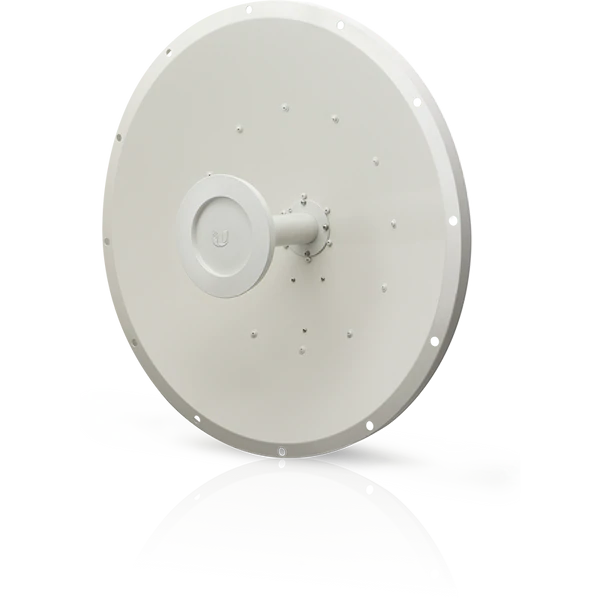

Pair a RocketDish™ antenna with a Rocket® basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately).
The RocketDish antenna delivers 2×2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX® Sector with Rocket delivers bandwidth to the ISP’s customers.
Technical Specifications:
| RD-3G26 | |
|---|---|
| Dimensions | 650 x 650 x 300 mm (25.6 x 25.6 x 11.81″) |
| Weight | 9.8 kg (21.61 lb) |
| Frequency Range | 3.3 – 3.8 GHz |
| Gain | 26 dBi |
| HPOL Beamwidth | 7° (3 dB) |
| VPOL Beamwidth | 7° (3 dB) |
| F/B Ratio | 33 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 787 N @ 200 km/h (177 lbf @125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
