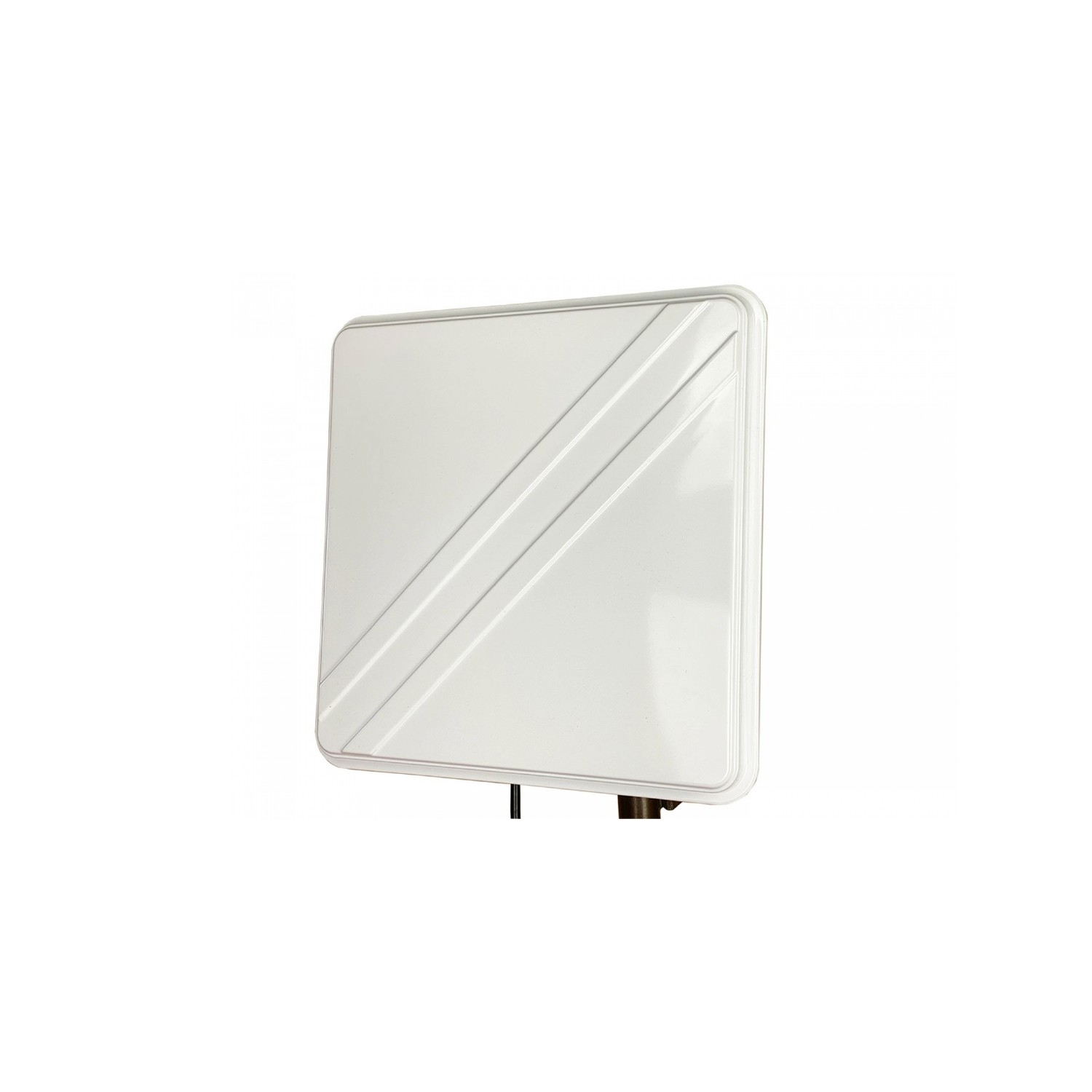

IoT M2M ( Machine to Machine ) Lora, Sigfox, XBee, RFID. Z-WAVE PANEL 868 MHz is carefully designed and construction directional antenna working in the unlicensed 867-870MHz band. Typical applications are monitoring and digital transfer of small amounts of data.
- t
- Energy (wind, solar panels),
- Intelligence Home
- Internet of Things
- Irrigation,
- Telemetry,
- RF sensor networks
- tracking people and objects
- geolocation,
- safety of workers.
t
t
t
t
t
t
t
t
The picture below shows an example of the use of this antenna in the Helium – The People’s Network PoC (Proof of Coverage)
Key benefits
- t
- Solid casing
- Powder painted backplate
- Resistant UV
t
t
Features
- t
- Adjustable polarization
electrical
Frequency (min)
790MHz
Frequency (max)
880MHz
Gain
- t
- 14dBi
VSWR (max)
2.00:1
Polarization
Horizontal or Vertical
Half Power Beam Width (-3dB) – horizontal
- t
- 30°
Half Power Beam Width (-3dB) – vertical
- t
- 30°
FBR (Front/Back Ratio)
>20dB
XPD (Cross Polarization Discrimination)
>21dB
Max Composite Power
500W
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
504x504x30
Weight (incl. mount)
2.80kg
enviromental
Enviroment
Outdoor
Windload
160km/h
Temperature
-40°C … 80°C
