Περιγραφή

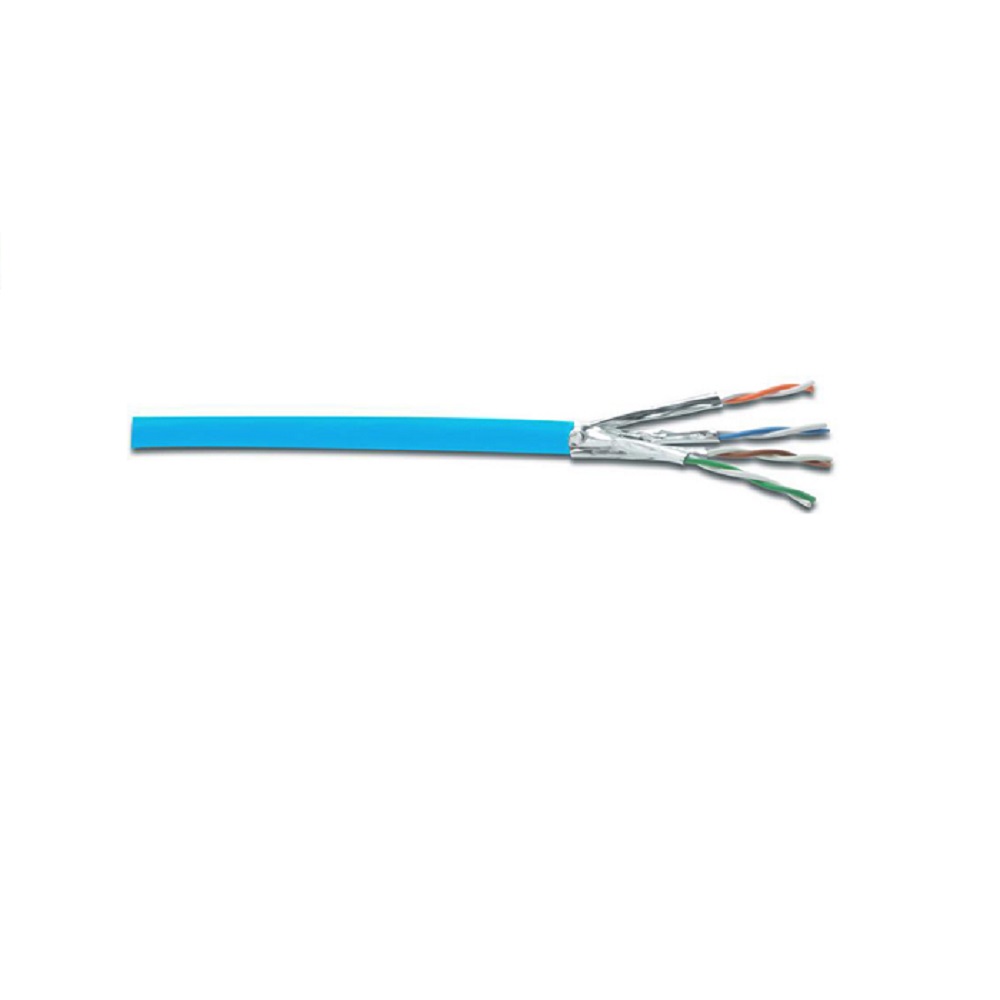

| Specification | CAT 6A |
|---|---|
| Shielding | U/FTP |
| No. of leads | 8 x |
| Cross section (each core) | 0.25 mm² |
| Cross section | 4 x 2 x 0.25 mm² |
| Features | Flame-retardant, Simplex, twisted pairs, Halogen-free, Common shield, rigid core |
| Outside Ø | 7 mm |
| Colour | Light blue |
| Max. frequency | 500 MHz |
| Content | 305 m |
| AWG max. | 23 |
| Packaged | Yes |
| Sold per metre | No |
| Manufacturer part # | DK-1623-A-VH-305 |
| Type | DK-1623-A-VH-305 |
| Insulation material | HDPE |
| RoHS-compliant | Yes |
| Min. temperature range (flexible installation) | 0 °C |
| Max. temperature range (flexible installation) | 50 °C |
| Min. temperature range (fixed installation) | 75 °C |
| Max. temperature range (fixed installation) | -20 °C |
| Halogen-free | Yes |
| Twisted pair cabling (part 1) | Yes (1) |
| Type | Rigid |
| Product type | Network cable |
