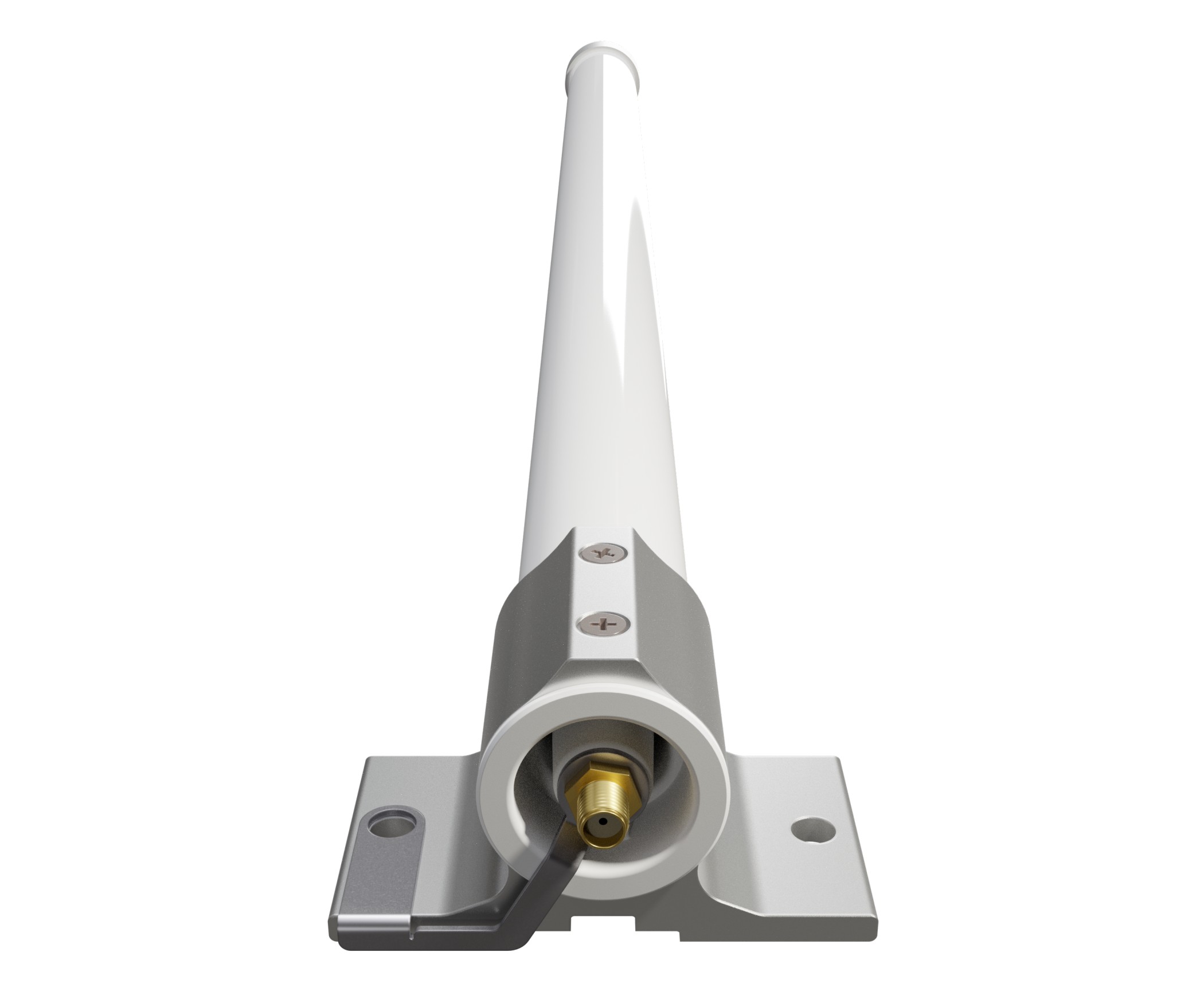

MikroTik LoRa Antenna (868 Omni antenna)
After reviewing your suggestions, we went back to the drawing board and redesigned the Antenna kit for LoRa®. The new kit offers significantly higher durability in a smaller package – without sacrificing performance. The improved cable durability and the added IP66 water resistance with protection against powerful jets make this kit an excellent choice for all kinds of marine and coastal projects.
Mount this antenna on a 25-50 mm mast or on the wall and enjoy the superb coverage!
Technical Specifications:
| Frequency | 824 – 960 MHz |
| Antenna gain | 6.5 dBi |
| Horizontal beamwidth | 360° |
| Vertical beamwidth | 30° |
| Nominal impedance | 50 Ohm |
| Lightning protection | DC ground |
| Connector | SMA female |
| Weight | 0.6 kg |
| Dimensions | 42 x 68 x 495 mm |
| Mast diameter | ∅ 25 – 50 mm |
