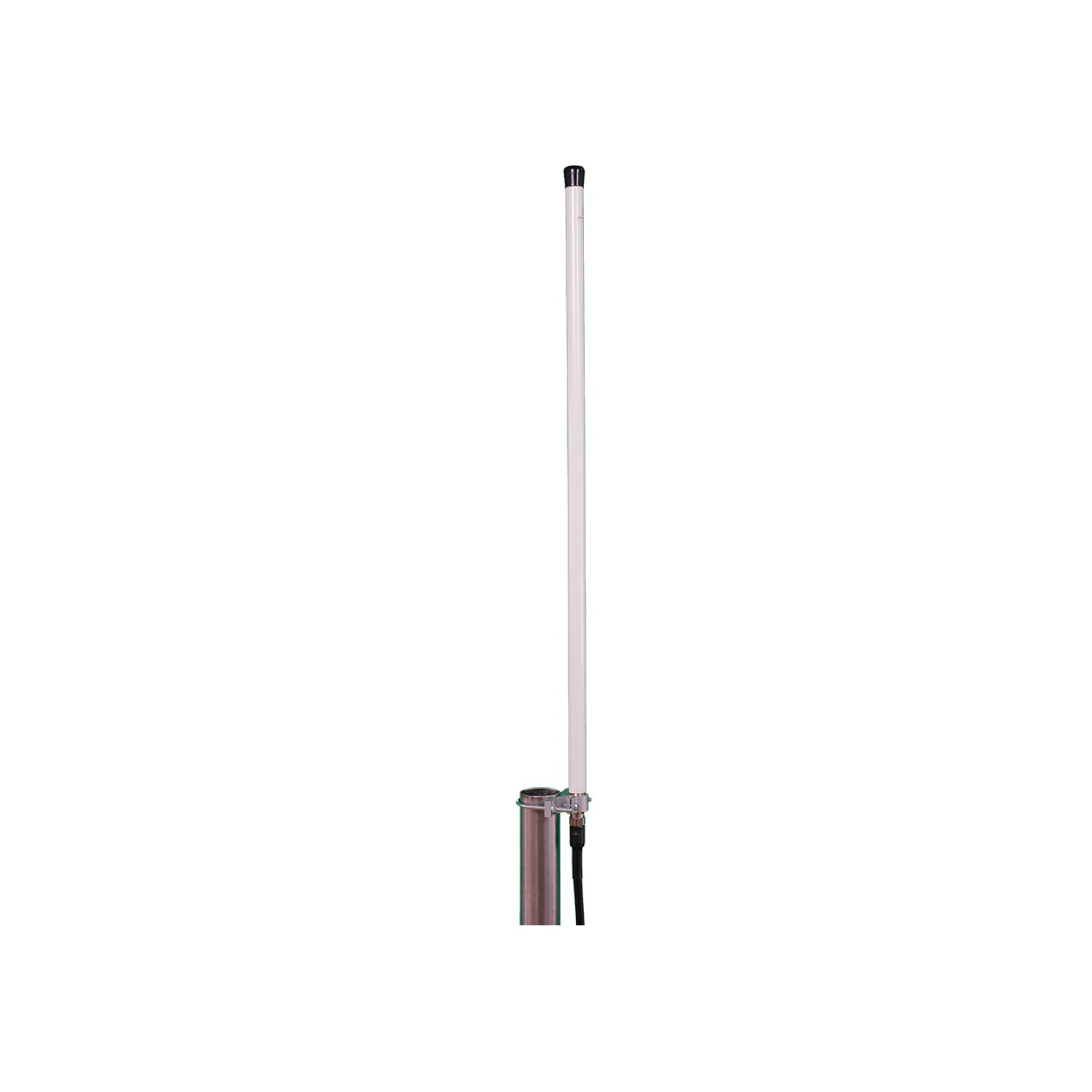

Interline IH-G08-F8688-V2 Omni HORIZON Helium 868 – 8V2 8 dbi

Now, an even better version of the excellent HORIZON 8 868 MHz antenna.   Fits the following miners: Bobcat, Nebra, Sensecap, Cal-Chip, ClodPi, COTX Networks, Controllino, FreedomFi, Linxdot, Heltec, Kerlink, Long AP, Pisces, RAKWireless, Syncrobit and other devices operating at this frequency. For certain applications, such as urban environments or where large areas of terrain need to be monitored, the Horizon 8 Helium outdoor antenna will be the perfect addition to your Helium system. It is a solid solution that provides extra power and coverage for Helium outdoor base stations. The antenna has a medium gain of 8dBi, a length of 86cm, a frequency range of 868-880MHz, and comes complete with pole and wall mounting hardware.   In the new model, we have rebuilt the antenna radiator, modifying the radiation pattern, by changing the “phasing”antenna radiators. It is a special antenna, with the main beam of radiation lowered (towards the ground) by 10 °, and suppressed undesirable upper lobes. This provides better coverage of the “area” under the antenna.   Helium LoraWan devices, working with commercially available broadband antennas, covering the EU868 and US915 MHz range.   These antennas also receive strong signals from GSM 900MHz transmitters, working in Europe with high powers.     This adversely affects the range and sensitivity of Helium-LoraWan devices, intermodulations may appear, especially near GSM antenna masts. Our antenna has a built-in bandpass filter that works without attenuation in the working band of the antenna and is characterized by attenuation for other frequencies. It is a specialized narrowband antenna operating in a dedicated band (EU868), which allows it to obtain a high signal-to-noise ratio (SNR) and maintain high sensitivity of the receiver in the device.   The range obtained on this antenna is even several dozen kilometers. The range depends on the mounting height, the type of Access Point, the quality of the antenna connector used (unit attenuation, length, quality of connectors), as well as the terrain and configuration of access points on the other side of the link.   In the construction of the heat sink, we do not use LC matching circuits (capacitance-inductance correlation) that allow for “artificial” antenna impedance adjustment and lowering the VSWR coefficient. This causes an increase in induction or capacitance which results in “blurring” of digital signals and has a negative impact on the bit / Hz encoding and the error rate (BER). Our antenna works “clean, resonant-resistive” and has a very low self-noise figure and an excellent bit / Hz encoding ratio.   The antenna housing is grounded, which protects it against electrostatic discharge (electric charges appearing on the antenna are discharged to the earthing system) For proper operation, the mast on which the antenna is mounted must be grounded to the existing lightning protection system.
