Overview:

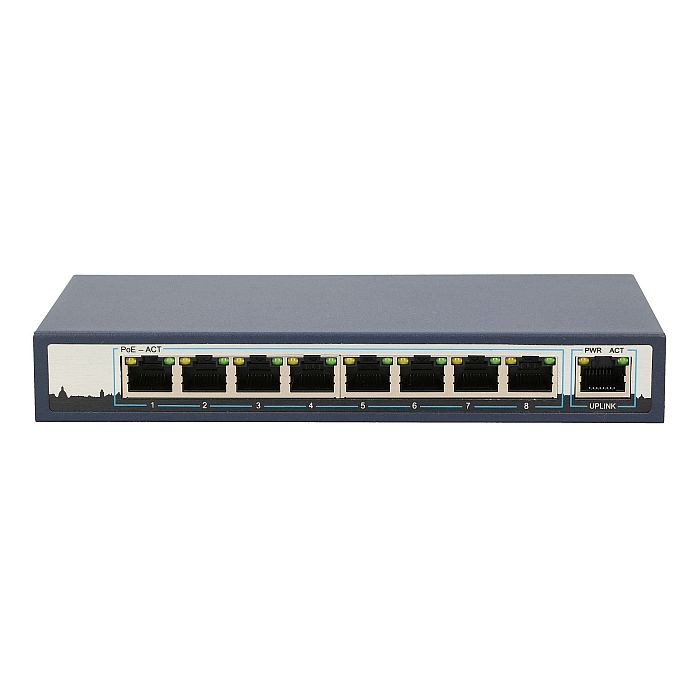

CERES is a 10-port smart POE switch. It has 4 working modes, AI VLAN mode, AI CCTV video monitoring mode, AI power mode, AI QOS mode. All ports are free to communicate by default; In AI VLAN mode, 1 -8 ports are isolated from each other, which can effectively restrain network storms and improve network performance. In AI Extend mode, the effective transmission distance of 1-8 ports can reach 250 meters, which is suitable for remote monitoring and power supply. In the AI power supply mode, the switch automatically detects the working status of the PD device and finds that the device abnormal automatically restarts the device. In AI QOS mode: the video data will be processed preferentially when the device is congested to make the video smoother The device supports IEEE 802 af/at standard, which can automatically detect and identify the PDs that comply with the IEEE 802 af/at standard and provide power for them, so there is no need to worry about PoE or non-PoE devices that can damage private standards. Key Features AI Extend: 1-8 port supports 250M meters long distance power supply (recommended cat 5 or above) AI VLAN: Isolating ports 1-4 from each other, restrain network storms effectively and improve network performance AI QOS: Customize application prioritization and increase network sensitivity. For example, video priority, monitoring transmission more smoothly AI power supply: Automatic detection power of port, power off and restart the device if find dead machine Supports IEEE 802.3af/at standard, automatically detects and identifies devices that comply with the IEEE 802.3af/at standard and supply power to it Support Auto MDI/MDIX; Adopt store-and-forward exchange method Intelligent power supply, the lowest power consumption, ensure PD power needs With power circuit protection, protect the safety of PD No configuration characteristics of the power supply is automatically supplied to the adaptive equipment; Fanless design, energy saving and environmental protection; no noise, reduce the impact on the environment Compact size design Support port without link power saving function All ports have wire-speed forwarding capability Plug and play, easy to use Technical Specification
| Network Port | · 8 10/100Mbps PoE RJ45 port (port 1～port 8) |
| · 2 10/100Mbps non-POE RJ45 port(port 9~port 10) | |
| Transfer Rate | ·100Mbps full Duplex, 10 or 100Mbps Half Duplex |
| Network protocol and standard | ·IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af IEEE802.3at |
| Performance | ·Bandwidth: 2Gbps(no block) |
| ·Network delay(100 to100Mbps): maximum 20 μs (using 64 byte packet) | |
| ·Frame filtering and transmission rate: | |
| 10M port maximum 14,800pps | |
| 100M port maximum 148,800pps | |
| LED indicator | ·Power |
| ·LINK/ACT | |
| POE Pin | 1/2(+), 3/6(-); |
| Power | ·Max. output power single port: 36W |
| ·Max Power supply: 96W | |
| Dimensions | ·Size (LxWxH): 184mm*94mm*27mm |
| ·Weight: 0.5kg | |
| Environment | ·Operating Temperature: 0°~40°C |
| ·Operating Humidity:: 10%~90%, Non-condensing | |
| EMC | ·CEClassB |
| ·FCCPart15, ClassB | |
| ·VCCIClassB | |
| ·C-Tick | |
| safety regulations | ·CE/ROHS/FCC/CCC |
