Περιγραφή

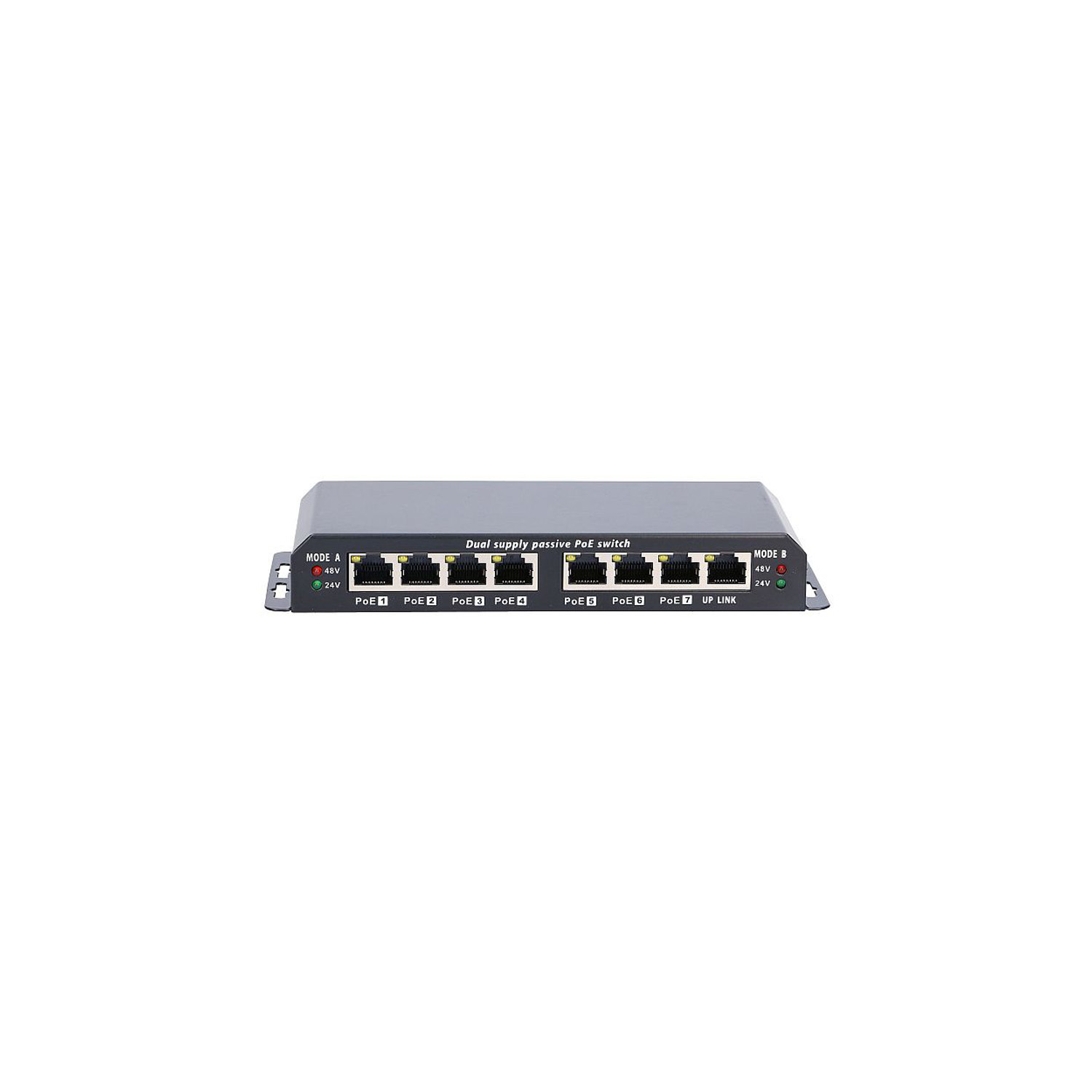

Features: 8 switch ports with 10/100 auto detect operation with status LED Available power supply options: – 18 volts, 24 volts, 48 volts 56 volts – 30 watts, 60 watts, 120 watts – 100 to 240 volt AC input, 50 or 60 hz high efficiency – Included 24V, 2.5A Power Adapter 7 always on PoE outputs with either Mode A and/or Mode B: – Mode A power and data on pins 1,2 (-) and 3,6 (+) – Mode B power or pins 4,5 (+) and 7,8 (-) with data on pins 1,2 and 3,6 Dual PTC fuses on each PoE output port – One 650mA fuse per port for Mode A – One 1000mA fuse per port for Mode B 18 volt to 56 volt operation 3 power supply inputs – 2×2.1mm power connectors, center positive – Mode A input with LED status – Mode B input with LED status – LED indicates 18/24 volt operation or 48/56 volt operation – Maximum input current per mode – 2.5 amps – Mode B PoE power input from the uplink port – 1.25 amp Uplink port 10/100 mb – No PoE voltage out – Auto detect 568 A or 568 B connections 802.3af emulation (always on, no autonegotiation) – 48 volt in either A or B modes Specifications: Input: 100-240V AC 50/60Hz Output: 18 TO 56 V 90W (Min) – included 24V, 2.5A Power Adapter Data: 1/2&3/6 Power: 12/36(Mode A) 45/78(Mode B) Data In Connects PC/HUB/Switch Weight 0.5Kg Ethernet Cable TIA/EIA 568 Cat. 5 Data rate 10/100Mbps Connector RJ-45 Operating Temperature 0°C ~ 40°C Storage Temperature -40°C~+70°C Operating Humidity 10%~80%RH Storage Humidity 5%~90%RH Certification CE & FCC Case of material metal work material Dimensions 192mm×82mm×27mm
