Περιγραφή

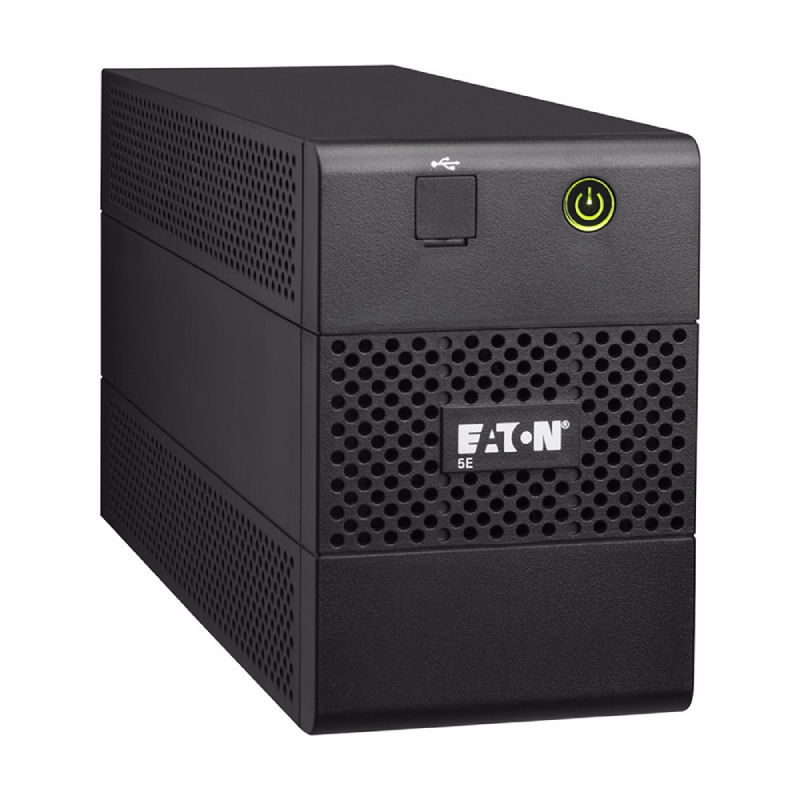

Eaton 5E UPS USB DIN, 850 VA, 480 W, Input: C14, Outputs: (2) C13, (1) Schuko, Tower
Technical Specifications:
PRODUCT NAME
Eaton 5E UPS
CATALOG NUMBER
5E850IUSBDIN
UPC
743172047649
PRODUCT LENGTH/DEPTH
288 mm
PRODUCT HEIGHT
148 mm
PRODUCT WIDTH
100 mm
PRODUCT WEIGHT
4.86 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b
CE Marked
CE Marked
CERTIFICATIONS
cUL Listed
UL Listed
CE
EAC
IEC/EN 62040-1
IEC/EN 62040-2
UL Listed
CE
EAC
IEC/EN 62040-1
IEC/EN 62040-2
CATALOG NOTES
DIN
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
WATTAGE
480 W
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
162 V
OUTPUT VOLTAGE – MAX
280 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
Includes one Schuko (DIN) Outlet
Data line protection to ensure that the internet line (including xDSL) is protected against surges
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
Includes one Schuko (DIN) Outlet
Data line protection to ensure that the internet line (including xDSL) is protected against surges
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
170 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
170-280 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
BACK-UP TIME
8 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-63 Hz
INPUT VOLTAGE – MAX
290 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
2
OPERATING TEMPERATURE – MIN
0 °C
VA RATING
850 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(2) C13, (1) Schuko
PHASE (INPUT)
1
PACKAGE CONTENTS
IEC-IEC output cable
User manual
User manual
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
1
OPERATING TEMPERATURE – MAX
40 °C
VOLTAGE
230V
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
RELATIVE HUMIDITY
0-90% non-condensing
OUTPUT APPARENT POWER
850 VA
RACK MOUNTING KIT
No
NUM OF OUTPUTS PC (SCHUKO)
1
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
30 sec
TYPE OF INTERFACE
USB
PRIMARY FREQUENCY – MIN
45 Hz
BATTERY RATING
12 V / 9 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
162-290 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
63 Hz
ALTITUDE
2000 m
