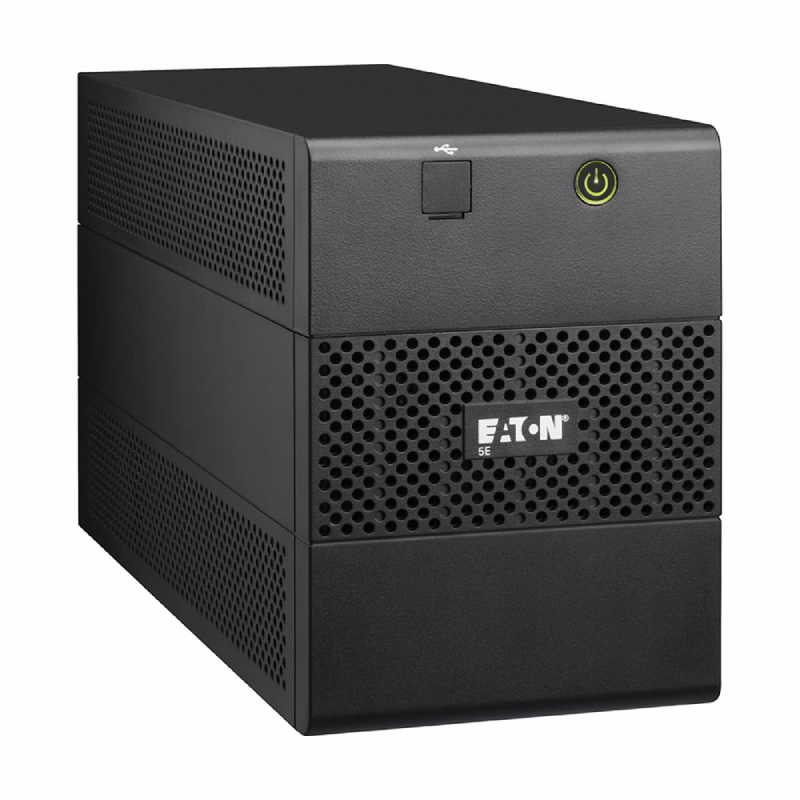

Eaton 5E UPS USB, 1500 VA, 900 W, Input: C14, Outputs: (6) C13, Tower
Technical Specifications:
PRODUCT NAME
Eaton 5E UPS
CATALOG NUMBER
5E1500IUSB
UPC
743172047601
PRODUCT LENGTH/DEPTH
330 mm
PRODUCT HEIGHT
180 mm
PRODUCT WIDTH
133 mm
PRODUCT WEIGHT
10.46 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CE Marked
CERTIFICATIONS
IEC/EN 62040-2
IEC/EN 62040-1
EAC
CE
IEC/EN 62040-1
EAC
CE
CATALOG NOTES
EMEA & GLOBAL
BATTERY
BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
View runtime graph
BATTERY QUANTITY
2
BATTERY MANAGEMENT
Automatic battery test, deep-discharge protection, cold-start capable
BATTERY RATING
12 V / 9 Ah
EXTENDED BATTERY CAPABILITY
No
ELECTRICAL OUTPUT
RECEPTACLE
(6) C13
VOLTAGE
230V
WATTAGE
900 W
OUTPUT VOLTAGE RANGE
170-280 V
OUTPUT NOMINAL VOLTAGE
230V
FEED TYPE
1
TOPOLOGY
Line-interactive
VA RATING
1500 VA
ELECTRICAL INPUT
INPUT CONNECTION
C14
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
NOMINAL FREQUENCY
50/60 Hz
INPUT VOLTAGE RANGE
162-290 V
INPUT FREQUENCY RANGE
45-63 Hz
COMMUNICATIONS
INCLUDES NETWORK CARD
No
COMMUNICATION
USB port (HID compliant)
ETHERNET INTERFACE
No
USER INTERFACE
LEDs
POTENTIAL FREE SWITCH CONTACT
No
EXPANSION SLOTS
No
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
TYPE OF INTERFACE
USB
ENVIRONMENTAL
ALTITUDE
2000 m
NOISE LEVEL
<45 dB at 1 meter
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
RELATIVE HUMIDITY
0-90% non-condensing
ADDITIONAL SPECIFICATIONS
CONSTRUCTION TYPE
Free standing model
PACKAGE CONTENTS
(2) IEC-IEC output cables
User manual
User manual
PHASE (OUTPUT)
1
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black
EFFICIENCY
95
RACK MOUNTING KIT
No
PHASE (INPUT)
1
SURGE PROTECTION
Yes
