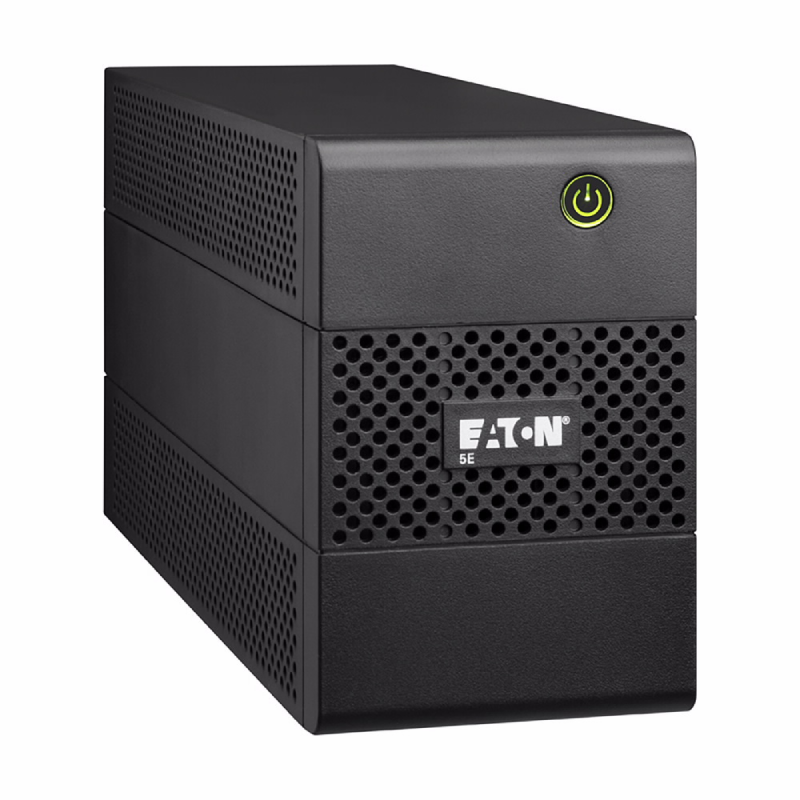

Eaton 5E UPS, 500 VA, 300W, Input: C14, Outputs: (4) C13, Tower
Technical Specifications:
PRODUCT NAME
Eaton 5E UPS
CATALOG NUMBER
5E500I
UPC
743172047557
PRODUCT LENGTH/DEPTH
288 mm
PRODUCT HEIGHT
148 mm
PRODUCT WIDTH
100 mm
PRODUCT WEIGHT
3.66 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CB
CE Marked
CE Marked
CERTIFICATIONS
CB
IEC/EN 62040-1
CE
EAC
IEC/EN 62040-2
IEC/EN 62040-1
CE
EAC
IEC/EN 62040-2
CATALOG NOTES
EMEA & GLOBAL
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
WATTAGE
300W
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
162 V
OUTPUT VOLTAGE – MAX
280 V
SECONDARY FREQUENCY – MIN
50 Hz
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
Saves space with a compact tower design
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
170 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
170-280 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
BACK-UP TIME
6 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-63 Hz
INPUT VOLTAGE – MAX
290 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
No
NUMBER OF OUTPUTS C13
4
OPERATING TEMPERATURE – MIN
0 °C
VA RATING
500 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(4) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
(2) IEC-IEC output cables
User manual
User manual
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
1
OPERATING TEMPERATURE – MAX
40 °C
VOLTAGE
230V
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
RELATIVE HUMIDITY
0-90% non-condensing
OUTPUT APPARENT POWER
500 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
30 sec
TYPE OF INTERFACE
None
PRIMARY FREQUENCY – MIN
45 Hz
BATTERY RATING
12 V / 4.5 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
162-290 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
63 Hz
ALTITUDE
2000 m
