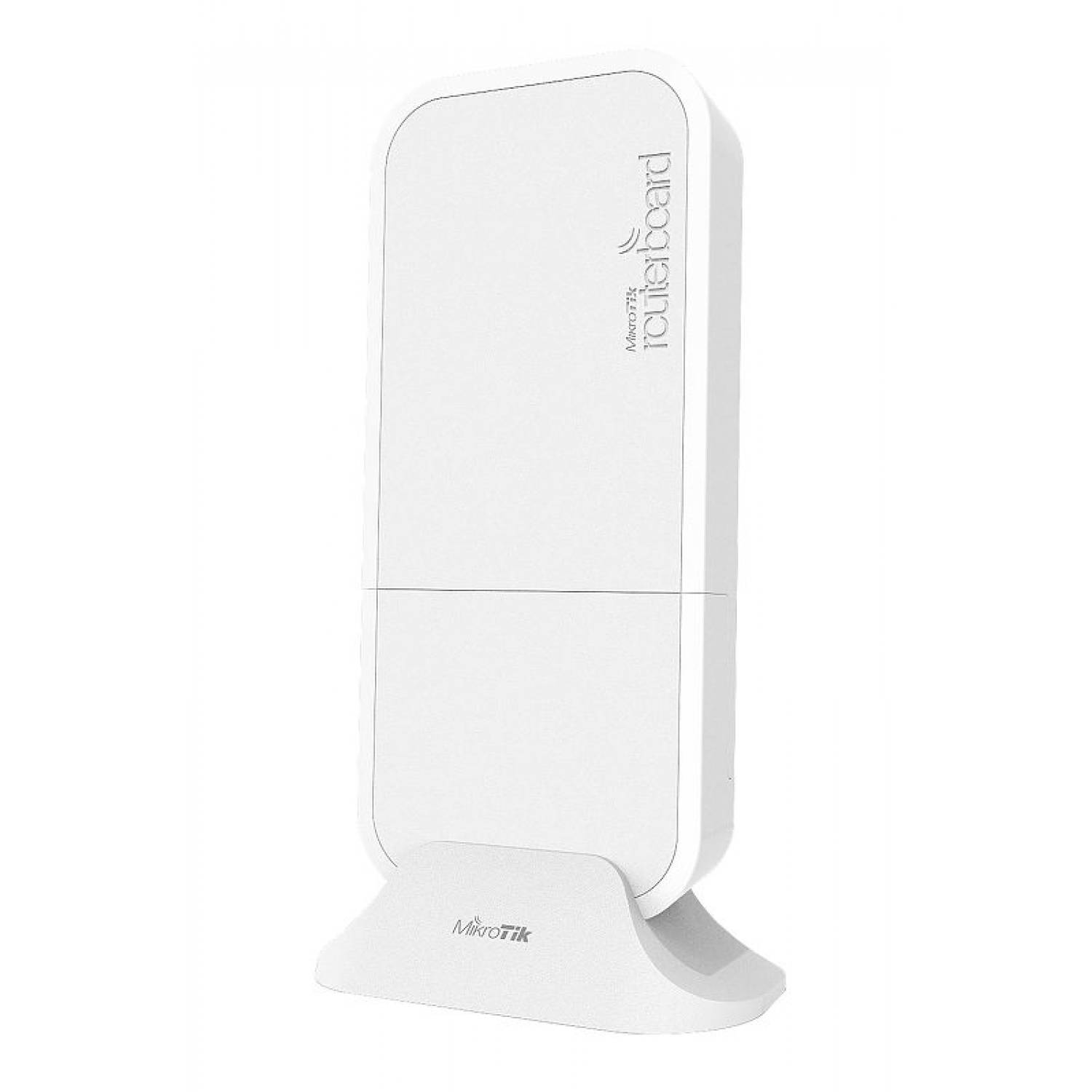

RouterBoard wAP ac LTE6 (RBwAPGR-5HacD2HnD&R11e-LTE6)
A small package with huge ambition – the wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its new CAT6 LTE modem enables even greater download speed – up to 300 Mbps!
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
wAP ac LTE6 kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.
Technical Specifications:
| CPU | Quad-core IPQ-4018 716 MHz |
| RAM | 128 MB |
| Ethernet port | 2 x 10/100/1000 mbps |
| Wireless | Built-in 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain |
| Wireless antenna gain | 2,5 dBi |
| LTE antenna gain | 4 dBi (with uFL connector) |
| Antenna beam width | 360° |
| LTE category | 6 (300 Mbps downlink, 50 Mbps uplink) |
| 3G category | R7 (21 Mbps downlinks, 5.76 Mbps uplink) R8 (42.2 Mbps downlink, 5.76 Mbps uplink) |
| 2G category | Class12 |
| SIM slot | 1 |
| Powering | Passive PoE 10-57V, |
| PoE in | Passive PoE 18-57V or active 802.3af/at |
| Dimensions | 185 x 85 x 30 mm |
| Operating temperature | -30°C .. +60°C tested |
| License level | 4 |
| Operating System | RouterOS |
| MiniPCIe slots | 1 |
| Max Power consumption | 16 W |
